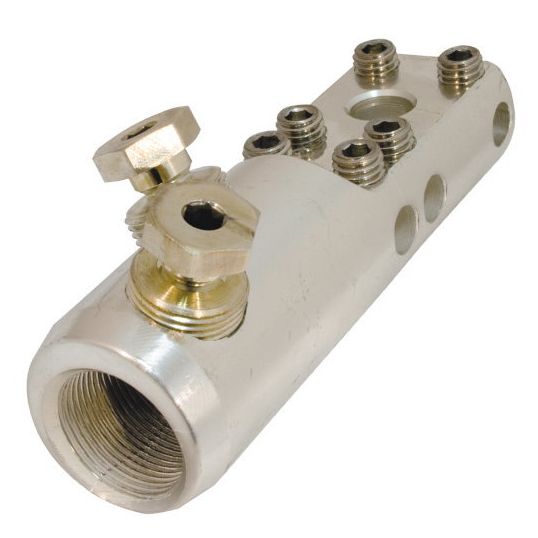

Cabac URD Lug & Terminal Block with Shear Head Bolts Copper/Aluminium 240mm

Description

URD Lug & Terminal Block with Shear Head Bolts, Copper/Aluminium, 240 mm Conductor, Bi-Metal Body, Copper Conductor/Aluminium, Tin Plated Finish, with Shear Head Bolts

Key Specifications

Barcode (EAN-13)	9318674703518
SKU	CAABALURD240
Brand	Cabac
Product Type	Lugs Bolted

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Designed to make looped pillar connection systems quick and easy - eliminates many of the components and crimping needs of current practices For stranded, circular stranded and solid sector cables Patented lug design In-built terminal block with a series of range taking tunnels Use with other Cabac URD covers and busbars The main conductor is connected using the proven shear bolt technology, which eliminates the need for crimp tools, and attendant operator skills The unique palm incorporates an in-built terminal block offering a series of range taking tunnels accommodating up to 50mmconductors for service connections Two separate tunnels allow connection of street lighting conductors To create the loop, connectors are bolted back to back, using two or three/four way buss bars, which allow branch off connections to be made with ease A big advantage of this system, is the main looped conductors can be disconnected during servicing without the loss of the service connection
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	BALURD240
Conductive Material	Copper/Aluminium
Body Material	Bi-Metal
Conductor Size	240 mm
Finish	Tin Plated
