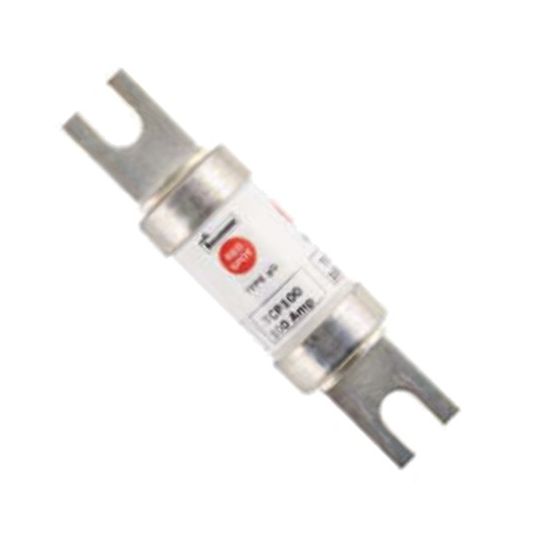

Bussmann Fuse Link HRC Bolt In Offset 80 Amp 660 to 690VAC/350VDC 80 kA at 690VAC Class gG BS88 Type A4
Loading...
Description
Fuse Link HRC Bolt In Offset, 660 to 690 VAC/350 VDC, 80 Amp, Class gG, Interrupt Capacity: 80 kA at 690 VAC, 94mm Fixing Centres, Bolt In Offset Tag, 26mm Diameter x 111mm Length, BS88 Type A4
Key Specifications
| SKU |
BUSTCP80
|
|---|---|
| Brand |
Bussmann
|
| Product Type |
Fuse Links HRC Bolt In
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | TCP80 |
| Dimensions | 26 mm Diameter x 111 mm Length |
| Current | 80 Amp |
| Fixing Centres | 94 mm |
| Interrupt Capacity | 80 kA |
| Standard Reference | BS88 Type A4 |
| Utilisation Category | Class gG |
| Tag Type | Bolt In Offset |
| Voltage | 660-690 Volt AC/350 Volt DC |
