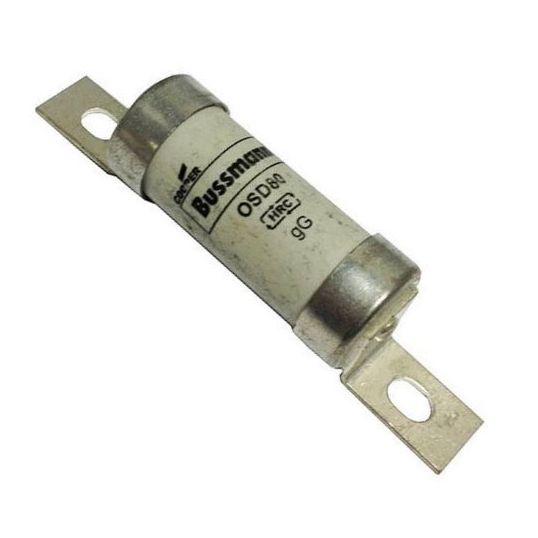

Bussmann Fuse Link HRC Bolt In Offset 100 Amp 500VAC 80 kA Class gG

chevron-left
loader
Loading...

Description

chevron-down
Fuse Link HRC Bolt In Offset, 500 VAC, 100 Amp, Class gG, Interrupt Capacity: 80 kA, 73mm Fixing Centres, Bolt In Offset Tag, 22.3mm Diameter x 95mm Length

Key Specifications

chevron-down
SKU
BUSOSD100
Brand
Bussmann
Product Type
Fuse Links HRC Bolt In

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • For general industrial and motor applications
  • For use with CM100F fuse holders
Standard Pack Size 1
UNSPSC Class 39121600
UOM EA
Vendor Product OSD100
Dimensions 22.3 mm Diameter x 95 mm Length
Current 100 Amp
Fixing Centres 73 mm
Interrupt Capacity 80 kA
Utilisation Category Class gG
Tag Type Bolt In Offset
Voltage 500 Volt AC
