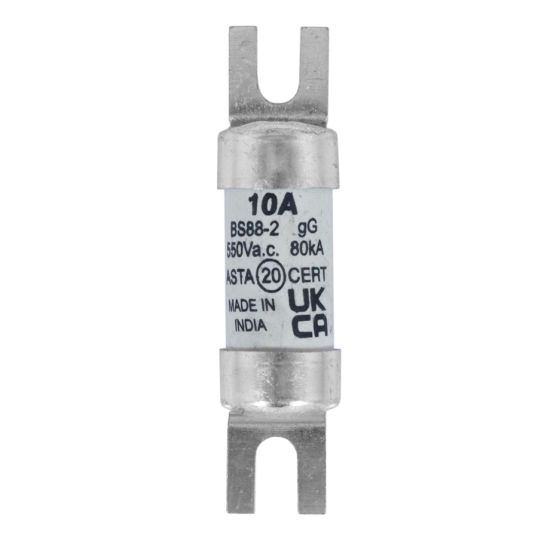

Bussmann Fuse Link HRC Bolt In Offset 10 Amp 550VAC 80 kA Class gG BS88 Type A1
Loading...
Description
HRC Fuse Link, 550 Volt AC, 10 Amp, 80 kA Interrupt Capacity, Class gG, 44 mm Fixing Centres, Bolt In Offset, 14 mm Diameter x 55 mm Length, BS88 Type A1
Key Specifications
| SKU |
BUSNITD10
|
|---|---|
| Brand |
Bussmann
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 20 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | NITD10 |
| Voltage | 550 Volt AC |
| Interrupt Capacity | 80 kA |
| Standard Reference | BS88 Type A1 |
| Utilisation Category | Class gG |
| Dimensions | 14 mm Diameter x 55 mm Length |
| Current | 10 Amp |
| Fixing Centres | 44 mm |
| Tag Type | Bolt In Offset |
