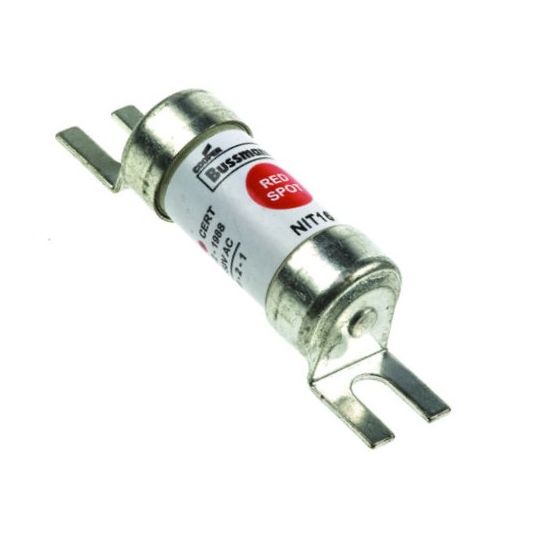

Bussmann Fuse Link HRC Bolt In Offset 10 Amp 550VAC 80 kA Class gG BS88 Type A1

chevron-left
loader
Loading...

Description

chevron-down
HRC Fuse Link, 550 Volt AC, 10 Amp, 80 kA Interrupt Capacity, Class gG, 44 mm Fixing Centres, Bolt In Offset, 14.1 mm Diameter x 55.6 mm Length, BS88 Type A1

Key Specifications

chevron-down
SKU
BUSNIT10L
Brand
Bussmann

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • A range of BS fuse links in sizes A1 to A4 specifically designed for the protection of general industrial applications e.g. power distribution, cable protection, motor protection
  • For use with CM32FC, RS20 fuse holders
Standard Pack Size 1
UNSPSC Class 39121600
UOM EA
Vendor Product NIT10L
Dimensions 14.1 mm Diameter x 55.6 mm Length
Current 10 Amp
Fixing Centres 44 mm
Interrupt Capacity 80 kA
Standard Reference BS88 Type A1
Utilisation Category Class gG
Tag Type Bolt In Offset
Voltage 550 Volt AC
