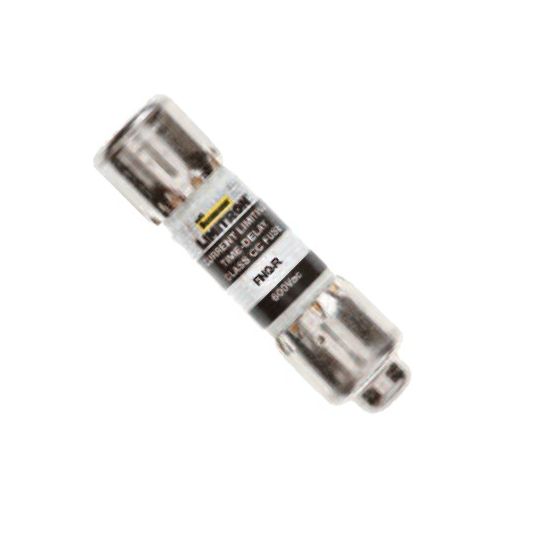

Bussmann US Fuse Link Time Delay 7A 600VAC/300VDC 200kA/20kA Class CC 10x38mm

Description

US Fuse Link Time Delay, 600 VAC/300 VDC, 7 Amp, Interrupt Capacity: 200 kA at 600 VAC, 20 kA at 300 VDC, Class CC, 10mm Diameter x 38mm Length

Looking for something specific? Search with keywords to help filter your required specifications.

Features	Provides 10X better current limitation to help prevent equipment damage caused by short-circuit events 200 kA interrupting rating complies with NEC Section 110.9 for today's large capacity systems Fast-acting fuse helps prevent equipment damage caused by short-circuit events Rejection type fuse fits both standard and rejection-style holders The Class CC FNQ-R Limitron fuse meets the needs of control circuit transformer protection FNQ-R fuses can be sized according to NEC and UL requirements and still allow the high inrush currents, with significantly more time-delay than the UL minimum value of 12 seconds at 200% for Class CC fuses Ideal for critical industrial or commercial applications that have specific current limitation requirements Branch Circuits, Line Protection, Small Control Transformers, Industrial Control
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	FNQ-R-7
Diameter	10 mm
Current	7 Amp
Interrupt Capacity	200 kA @ 600 VAC/20 kA @ 300 VDC
Utilisation Category	Class CC
Voltage	600 Volt AC/300 Volt DC
