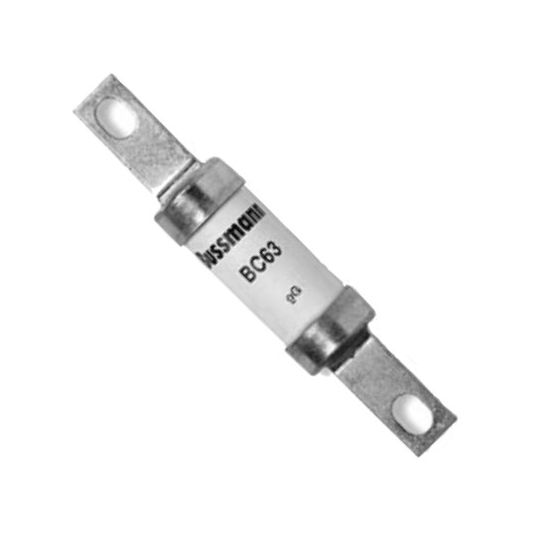

Bussmann Fuse Link HRC Bolt In Centre 50 Amp 500VAC/250VDC 80 kA at 500VAC Class gG
Loading...
Description
Fuse Link HRC Bolt In Centre, 500 VAC/250 VDC, 50 Amp, Class gG, Interrupt Capacity: 80 kA at 500 VAC, 97mm Fixing Centres, Bolt In Centre Tag, 21mm Diameter x 113.5mm Length
Key Specifications
| SKU |
BUSBC50
|
|---|---|
| Brand |
Bussmann
|
| Product Type |
Fuse Links HRC
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 20 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | BC50 |
| Dimensions | 21 mm Diameter x 113.5 mm Length |
| Current | 50 Amp |
| Fixing Centres | 97 mm |
| Interrupt Capacity | 80 kA |
| Utilisation Category | Class gG |
| Tag Type | Bolt In Centre |
| Voltage | 500 Volt AC/250 Volt DC |
