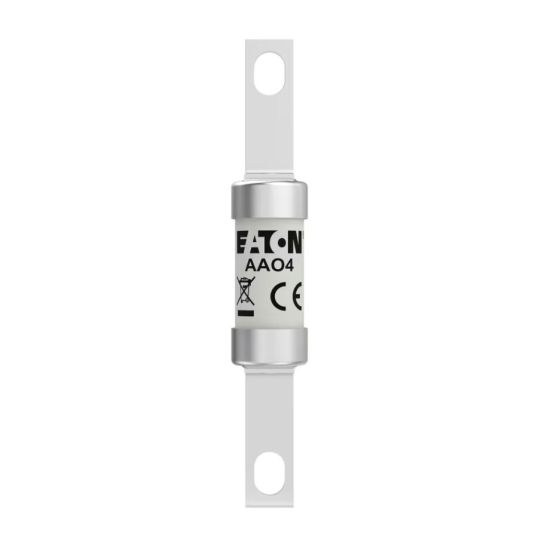

Bussmann Fuse Link HRC Bolt In Offset 4 Amp 550VAC 80 kA Class gG BS88 Type A2
Loading...
Description
Fuse Link HRC Bolt In Offset, 550 VAC, 4 Amp, Class gG, Interrupt Capacity: 80 kA, 73mm Fixing Centres, Bolt In Offset Tag, 14mm Diameter x 85mm Length, BS88 Type A2
Key Specifications
| SKU |
BUSAAO4
|
|---|---|
| Brand |
Bussmann
|
| Product Type |
Fuse Links HRC Bolt In
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 20 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | AAO4 |
| Dimensions | 14 mm Diameter x 85 mm Length |
| Current | 4 Amp |
| Fixing Centres | 73 mm |
| Interrupt Capacity | 80 kA |
| Standard Reference | BS88 Type A2 |
| Utilisation Category | Class gG |
| Tag Type | Bolt In Offset |
| Voltage | 550 Volt AC |
