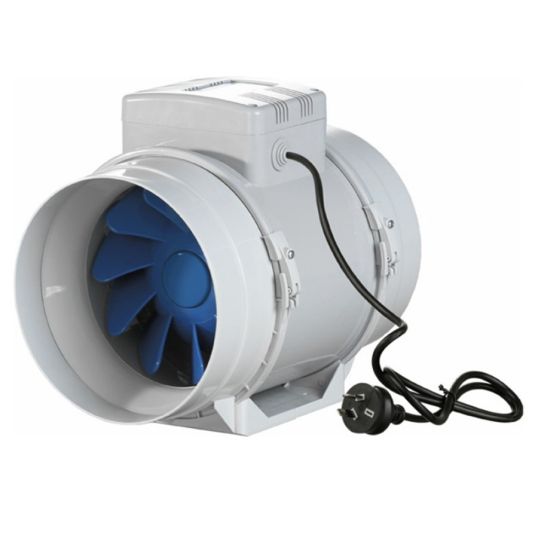

Blauberg In-Line Ducted Exhaust Fan 200mm 230V 0.34-0.48 Amp 76-108W 805-1080 cu-m/hr 39-45 dBA at 3m Light Grey

chevron-left
loader
Loading...

Description

chevron-down
Ducted Exhaust Fan In-Line, 200 mm, 230 Volt, 0.34/0.48 Amp, 76-108 Watt, 50/60 Hz, 1 Phase Phase, 805/1080 cu-m/hr, 39-45 dBA at 3 mtr, IPX4/44, Plastic, Grey, 295.5 mm Length, 239 mm Width, 261 mm Height

Key Specifications

chevron-down
Barcode (EAN-13)
4046634018543
SKU
BLATURBO200
Brand
Blauberg
Range Name
Turbo
Product Type
Exhaust Fans Ducted

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Supply and extract ventilation Systems installed in various premises
  • Mounting in kitchens, bathrooms and other humid premises
  • Ventilation air ducts requiring high pressure, powerful air flow and low noise level
  • Compatible with 100 up to 315mm dia round air ducts
  • The casing is made of low-flammable polypropylene
  • Ventilation unit with terminal box
  • Can be turned to any position
  • Special design of the casing permits easy dismantling of the impeller and motor block for fan servicing without dismantling the air duct
  • Two-speed single-phase motor on ball bearings
  • Equipped with thermal overheating protection
Standard Pack Size 1
UNSPSC Class 40101600
UOM EA
Vendor Product BLATURBO200
Air Flow Cubic Meters per Hour 805/1080 cu-m/hr
Colour Grey
Fan Size 200 mm
Frequency 50/60 Hz
Height 261 mm
IP Rating IPX4/44
Material Plastic
Phase 1 Phase
Sound Level 39-45 dBA at 3 mtr
Wattage 76-108 Watt
Width 239 mm
Voltage 230 Volt
