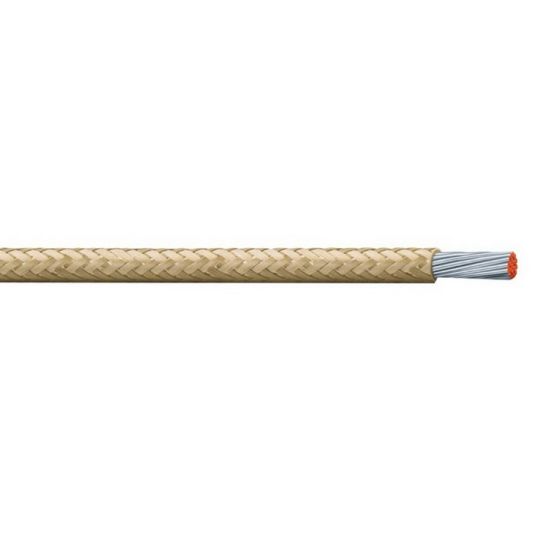

Bambach High Temperature Flexible Wire Single Insulated 1 Core 1.5mm 0.6/1kV Glass Braid +150C Natural

Description

Flexible Wire, Single Insulated, High Temperature, 1 Core, 1.5 mm, Class 5 Oxygen Free Tinned Annealed Copper, 0.6/1 kV, 37 Amp, 30/0.25 mm Strands, 3.7 mm Overall Diameter, 22.2 mm Bend Radius, Silicone Impregnated Glass Braid Insulation, Unsheathed, Natural Insulation, 0 to 150 deg C, AS/NZS 1125, AS/NZS 3158, IEC 60228

Key Specifications

SKU	BAM19520NL
Brand	Bambach
Range Name	Glass Insulated
Product Type	Flexible Cable High Temperature

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Oxygen free tinned copper for high conductivity soldered connections and corrosion protection Class 5 stranding provides increased flexibility Double glass braid for high insulation resistance Silicone varnish and double glass braid for 100% coverage High Temperature Rating - Glass insulated tinned copper conductors are suitable for use in high temperature areas Flexible Stranding - Class 5 flexible conductor stranding Easy to Solder - Tinned copper conductors for easy solder adhesion Abrasion Resistant - Silicone varnish impregnated, double glass braided insulation provides excellent abrasion resistance
Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	19520NL
Voltage	0.6-1 kV
Conductor Size	1.5 mm
Conductor Type	Class 5 Annealed Copper
Overall Diameter	3.7 mm
Current	37 Amp
Temperature	0 to 150 deg C
Number of Cores	1 Core
Bend Radius	22.2 mm
Insulation Colour	Natural
Insulation Material	Silicone Impregnated Glass Braid
Sheath Material	Unsheathed
Standards	AS/NZS 1125 AS/NZS 3158 IEC 60228
Stranding	30/0.25 mm
