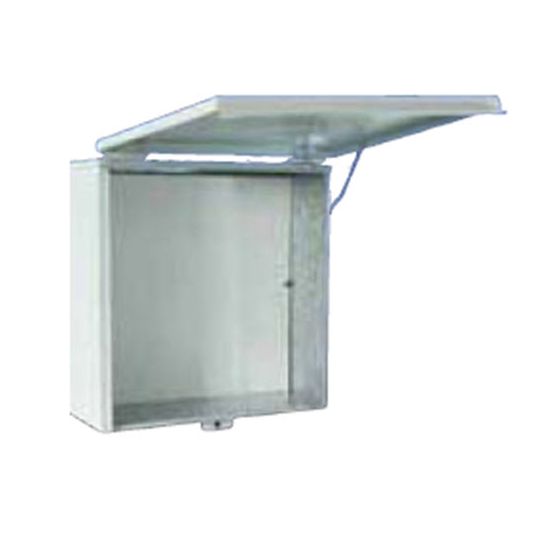

B&R Metal Enclosure W483mm H648mm D254mm Panel Mount Steel Unpainted

chevron-left
loader
Loading...

Description

chevron-down
Metal Enclosure, 648mm Height, 483mm Width, 254mm Depth, 609mm Panel Height, 457mm Panel Width, Top Hinged Door, IP23, Panel, Steel, RAL 7035, Unpainted

Key Specifications

chevron-down
Barcode (EAN-13)
9321228018334
SKU
B&RTB2418/U
Brand
B&R
Product Type
Enclosures

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Solution for housing general purpose electrical equipment
  • Suitable for use in power distribution and metering applications
  • Top hinged removable door with door stay
  • Includes double hinged electrical grade blank panel for mounting equipment
  • Manufactured from galvanised steel to Z275
  • Powder coated light grey RAL7035
Standard Pack Size 1
UNSPSC Class 39121100
UOM EA
Vendor Product TB2418/U
Colour RAL7035 Grey
Door Type Top Hinged
Enclosure Depth 254mm
Enclosure Height 648mm
Enclosure Width 483mm
Finish Unpainted
IP Rating IP23
Material Steel
Mounting Method Panel
Panel Height 609mm
Panel Width 457mm
