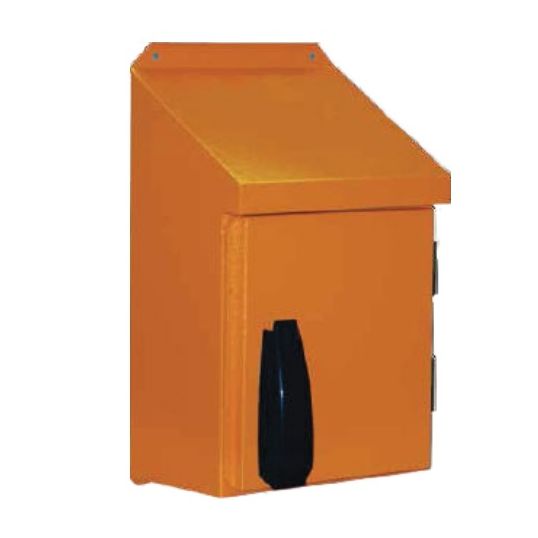

B&R Enclosure Single Door Inclined Roof General Purpose Heavy Duty Industrial IP66 Zinc Coated Steel 400 Wx250 Dx400 Hmm

Description

Enclosure Single Door Inclined Roof General Purpose Heavy Duty Industrial, 1 Door, Surface Mount, IP66, Zinc Coated Steel Housing, Zinc Coated Steel Door, Steel Mounting Plate, N4 Surface, 400 mm Height, 400 mm Width, 250 mm Depth

Key Specifications

SKU	B&RSP040425
Brand	B&R
Range Name	Pilbara SP
Product Type	Enclosures

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Pintle hinges Fully enclosed 3-point locking system on most sizes (excluding SP040425) Provision on door for additional mechanical fixings Designed to withstand extreme temperatures -10 deg C to 60 deg C 30 degree sloping roof to prevent build up of water and solids LockSock protective lock cover (IP55) Easy installation with top and bottom mounting flanges 2mm thick mounting pan mounted on ‘C’ rails
Standard Pack Size	1
UNSPSC Class	39121300
UOM	EA
Vendor Product	SP040425
Door Material	Zinc Coated Steel
Depth	250 mm
Finish	N4 Surface
Height	400 mm
Housing Material	Zinc Coated Steel
IP Rating	IP66
Mounting Method	Surface
Mounting Plate Material	Steel
Number of Doors	1
Width	400 mm
