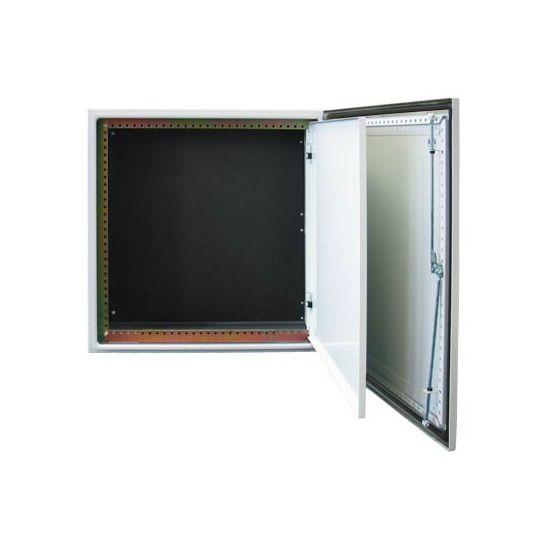

B&R Enclosure Single Door General Purpose Industrial RAL 7032 Pebble Grey IP66 Zinc Coated Steel 800 Wx500 Dx1800 H mm

Description

Enclosure Single Door General Purpose Industrial, 1 Door, Surface Mount, IP66, Zinc Coated Steel Housing, Zinc Coated Steel Door, Steel Mounting Plate, FIP Polyurethane Gasket, RAL 7032 Pebble Grey, Powder Coated, 1800 mm Height, 800 mm Width, 500 mm Depth

Key Specifications

Barcode (EAN-13)	9321228010024
SKU	B&RIP69295
Brand	B&R
Range Name	Monarch IP
Product Type	Enclosures Metal

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	C rail mountings for equipment Reversible door Gland plate on all but 175 mm and 270 mm deep enclosures Verticle body and door rails 3 point locking on models of 600 mm high and above Lockable L handle on enclosures 1600mm high and above (7mm square key turnbuckle lock on others)
Standard Pack Size	1
UNSPSC Class	39121300
UOM	EA
Vendor Product	IP69295
Colour	RAL7032 Pebble Grey
Door Material	Zinc Coated Steel
Depth	500 mm
Finish	Powder Coated
Gasket Material	FIP Polyurethane
Height	1800 mm
Housing Material	Zinc Coated Steel
IP Rating	IP66
Mounting Method	Surface
Mounting Plate Material	Steel
Number of Doors	1
Width	800 mm
