ASI Lamps Type 17 Miniature Lamp 3W 24V 125mA BA7s 0.8 MSCP 3000 hrs C2F Filament 6.8x20mm
Loading...
Description

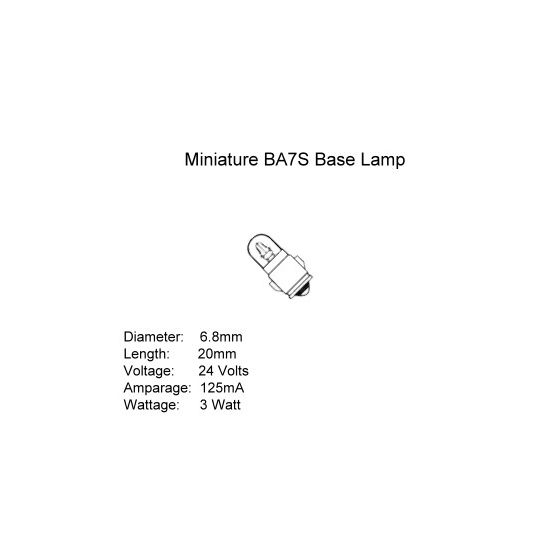

Indicator Lamp, Miniature, 3 Watt, 24 Volt, 125 mA, BA7s Base, 0.8 MSCP, 3000 hrs Average Life, C2F Filament, 6.8 mm Overall Diameter, 20 mm Overall Length
Key Specifications
| SKU |
ASS17-024/125
|
|---|---|
| Brand |
ASI Lamps
|
| Range Name |
Type 17
|
| Product Type |
Indicator Lamps Mini
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | 017-024/125 |
| Average Lamp Life | 3000 hrs |
| Base Type | BA7s |
| Current | 125 mA |
| Diameter | 6.8 mm |
| Filament | C2F |
| MSCP | 0.8 MSCP |
| Wattage | 3 Watt |
| Voltage | 24 Volt |
