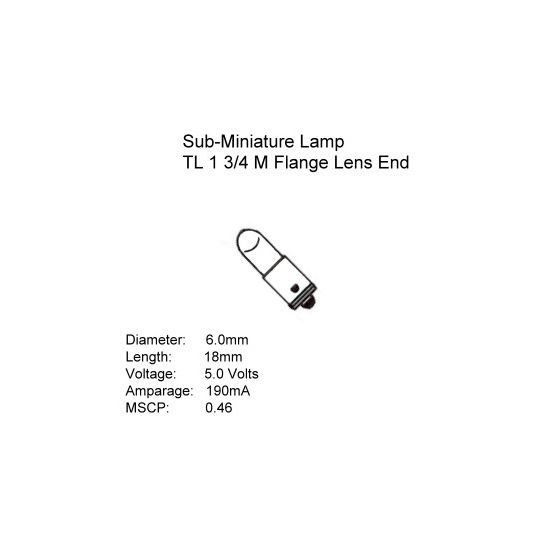

ASI Lamps Type 102 Sub-Miniature Lamp T1-3/4 5V 190mA Midget Flange Lens End 0.46 MSCP 5000 hrs C2R Filament 6x20mm

chevron-left
loader
Loading...

Description

chevron-down
Indicator Lamp, Sub-Miniature, T1-3/4, 5 Volt, 190 mA, Midget Flange Lens End Base, 0.46 MSCP, 5000 hrs Average Life, C2R Filament, 6 mm Overall Diameter, 20 mm Overall Length

Key Specifications

chevron-down
SKU
ASS102-005/190
Brand
ASI Lamps
Range Name
Type 102
Product Type
Indicator Lamps Sub-Mini

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 1
UNSPSC Class 39121500
UOM EA
Vendor Product 102-005/190
Average Lamp Life 5000 hrs
Base Type Midget Flange Lens End
Current 190 mA
Diameter 6 mm
Filament C2R
Lamp Shape T1-3/4
MSCP 0.46 MSCP
Voltage 5 Volt
