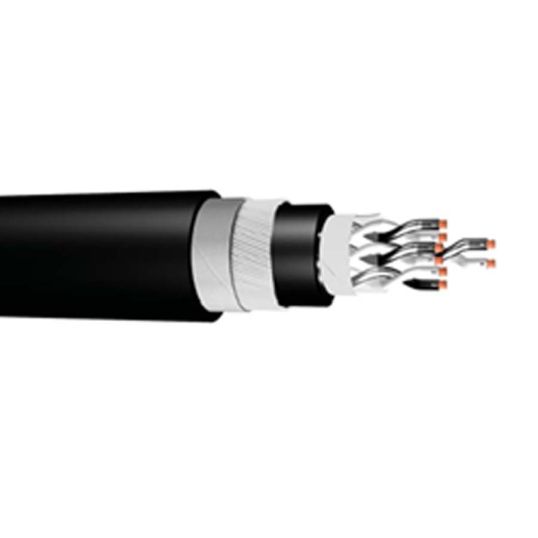

APEC Instrumentation Cable 2 Pair 0.5mm 110/150V Copper/PVC/Overall Shield/Steel Wired Armour/PVC Black/Blue

Description

Instrumentation Cable Armoured, 0.5 mm, Annealed Copper, 110-150 Volt, 2 Pair, 7/0.3 mm Strands, Overall Screened Screen, 12.4 mm Overall Diameter, 0.4 mm Insulation Thickness, Steel Wire Armour, Black/White Numerals Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Black Sheath, UL 2464 AS 1125

Key Specifications

Barcode (EAN-13)	932666301784
SKU	APEINSVOS005P02B
Brand	APEC
Product Type	Instrumentation Cable Armoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	INSVOS005P02B
Voltage	110-150 Volt
Conductor Size	0.5 mm
Conductor Type	Annealed Copper
Core Colours	Black/White Numerals
Screen Format	Overall Screened
Sheath Colour	Black
Overall Diameter	12.4 mm
Armour Material	Steel Wire
Number of Pairs	2 Pair
Insulation Material	V-90 PVC
Insulation Thickness	0.4 mm
Sheath Material	5V-90 PVC
Standards	UL 2464 AS 1125
Stranding	7/0.3 mm
