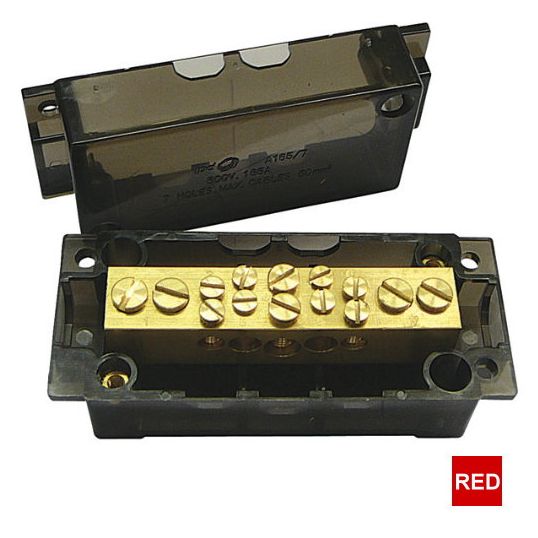

IPD Active Link 165A 7 Hole Front Wiring Panel Mount Red
Loading...
Description
Active Link, 500 Volt, 165 Amp, 7 Hole, Front Wiring Connection, For Use With 16-70 sq-mm Cable, Panel Mounting, Red, 99 mm Length x 42 mm Width x 41 mm Depth
Key Specifications
| Barcode (EAN-13) |
9322017024833
|
|---|---|
| SKU |
ALSA165/7R
|
| Brand |
IPD
|
| Product Type |
Meter Links & Link Bars
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121100 |
| UOM | EA |
| Vendor Product | A165/7R |
| Colour | Red |
| Connection Type | Front Wiring |
| Current | 165 Amp |
| Dimensions | 99 mm Length x 42 mm Width x 41 mm Depth |
| For Use With | 16-70 sq-mm Cable |
| Mounting Method | Panel |
| Number of Holes | 7 |
| Voltage | 500 Volt |
