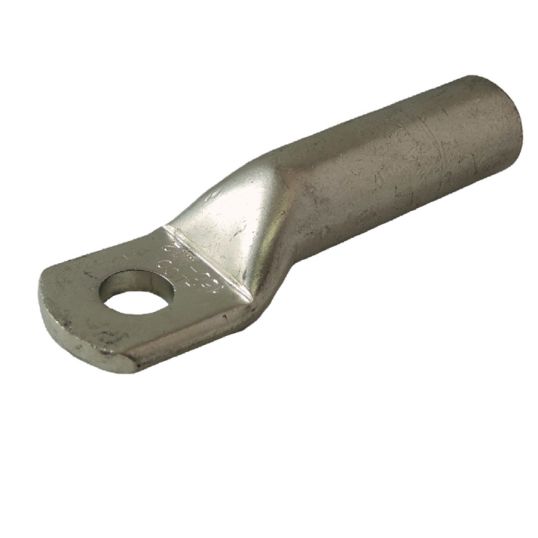

Alco Crimp Lug Long Barrel Copper 240mm M12 Stud 134mm OAL

Description

Crimp Lug Long Barrel Copper, 240 mm Conductor, M12 Stud, Long Barrel, 80mm Barrel, 134 mm Overall Length,1 Hole, Inside Diameter: 21.2 mm, 28.2 mm Outside Diameter, 41 mm Lug Width, 7 mm Lug Thickness, 42 mm Lug Length, Copper Body,Copper Conductor, Tin Electroplated Finish, -55 to 155 deg C

Key Specifications

Barcode (EAN-13)	9314572020702
SKU	ALCLLB240M12
Brand	Alco
Product Type	Lugs Long Barrel

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Non-insulated electro grade copper crimp lugs suitable for stranded to fine - stranded copper cable Tin Electroplated for corrosion resistance 99.9% copper for high conductivity
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	ALCLLB240M12
Barrel Length	80 mm
Barrel Type	Long
Body Material	Copper
Conductive Material	Copper
Conductor Size	240 mm
Finish	Tin Electroplated
Inside Diameter	21.2 mm
Lug Length	42 mm
Lug Thickness	7 mm
Lug Width	41 mm
Number of Holes	1
Outside Diameter	28.2 mm
Overall Length	134 mm
Stud Size	M12 Stud
Temperature	-55 to 155 deg C
