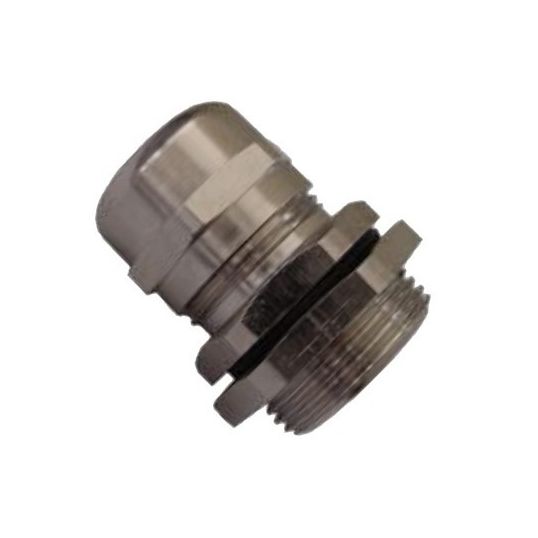

Alco Metal Cable Gland Unarmoured Shutter Type General Purpose M40 18-25mm Stainless Steel IP68

Description

Cable Gland Metal Unarmoured Shutter Type General Purpose, M40, 15 mm Thread Length, 1.5 mm, 18 mm Min. Sheath OD, 25 mm Max. Sheath OD, IP68, Stainless Steel Body, Neoprene Seal, -40 to 100 deg C

Key Specifications

Barcode (EAN-13)	9328587021906
SKU	ALCBRGM40-SS
Brand	Alco
Range Name	Type BRGM Stainless Steel

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	General purpose stainless steel glands for unarmoured cable Provides seal on cable sheath Locknut supplied as standard Made from stainless steel (316) For indoor and outdoor use
Standard Pack Size	4
UNSPSC Class	39121400
UOM	EA
Vendor Product	ALCBRGM40-SS
IP Rating	IP68
Body Material	Stainless Steel
Max. Sheath OD	25 mm
Min. Sheath OD	18 mm
Seal Material	Neoprene
Temperature	-40 to 100 deg C
Thread Length	15 mm
Thread Pitch	1.5 mm
Thread Size	M40
