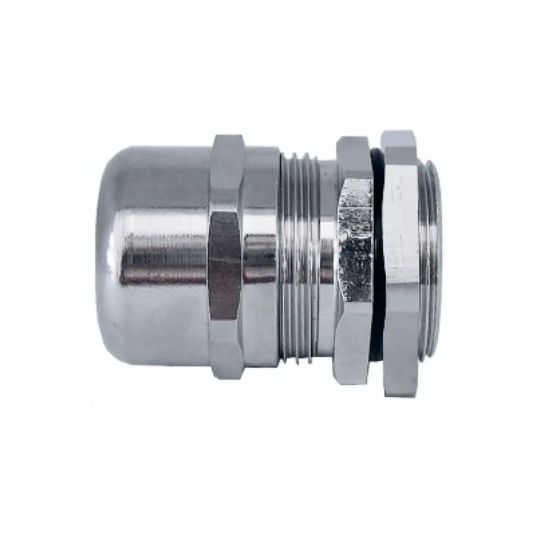

Alco Metal Cable Gland Unarmoured Shutter Type General Purpose M20 10-14mm Nickel Plated Brass IP66/68

Description

Metal Cable Gland, Unarmoured, Shutter Type, General Purpose, M20, 12 mm Thread Length, 1.5 mm Pitch, 10 mm Min. Sheath OD, 14 mm Max. Sheath OD, For Unarmoured Cable, 22 mm Width Across Flats, IP66/68, Neoprene Seal, Brass Body, Nickel Plated Finish, -40 to 100 deg C

Key Specifications

Barcode (EAN-13)	9328587021029
SKU	ALCBRGM20L
Brand	Alco
Product Type	Cable Glands Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Provides water tight seal on cable sheath and provides strain relief Indoor or outdoor use Rubber orange shroud Installation is extremely easy, simply insert cable through the assembled gland and tighten gland nut until cable is secured 5 mm Shielded diameter
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	ALCBRGM20L
For Use With	Unarmoured Cable
Finish	Nickel Plated
IP Rating	IP66/68
Body Material	Brass
Max. Sheath OD	14 mm
Min. Sheath OD	10 mm
Seal Material	Neoprene
Temperature	-40 to 100 deg C
Thread Length	12 mm
Thread Pitch	1.5 mm
Thread Size	M20
Width Across Flats	22 mm
