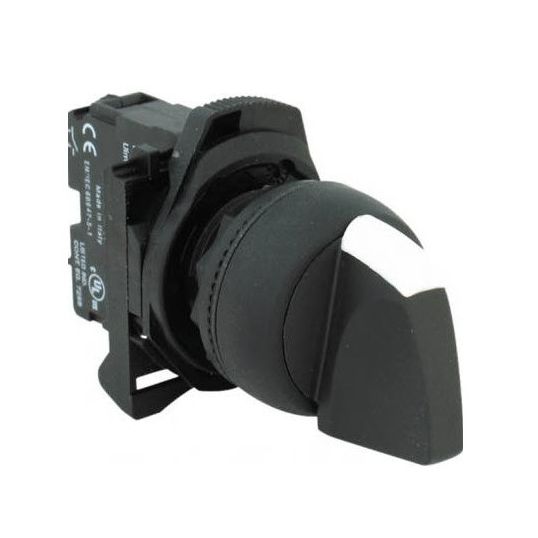

Allen-Bradley Rotary Selector Switch 3 Position Plastic Body Non Illuminated Latched/Maintained Black 22.5mm Panel Mount

$Allen_Bradley\Allen_Bradley_800FP_SM32.jpg$

Description

Rotary Selector Switch Complete, Knob Operator, Latched/Maintained/Non-Illuminated Momentary Action Operator Action, 1000000 hrs, 3 Position, Screw Terminal, 1.7 Nm Tightening Torque, Panel Mounting, 22.5 mm Mounting Diameter, IP66/65, NEMA ICS-5, Plastic Housing, Black, -25 to 70 deg C

Key Specifications

Barcode (EAN-13)	10662073818318
SKU	ALB800FP-SM32
Brand	Allen-Bradley
Product Type	Selector Actuators Rotary

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The 800F line of 22.5 mm push buttons is designed and manufactured to demanding performance specifications to ensure you receive optimized durability and performance 800FP operators are made of industrial grade thermoplastic for superior chemical resistance 800FM operators are constructed of tough die cast zinc alloy, finished with chromate plating that can be used in the most arduous applications
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	800FPSM32
Colour	Black
Housing Material	Plastic
IP Rating	IP66/65
Mounting Diameter	22.5 mm
NEMA Rating	NEMA ICS-5
Mounting Method	Panel
Number of Positions	3
Operating Cycles	1000000 hrs
Operator Action	Latched/Maintained/Non-Illuminated Momentary Action
Operator Type	Knob
Temperature	-25 to 70 deg C
Terminal Connection	Screw
Tightening Torque	1.7 Nm
