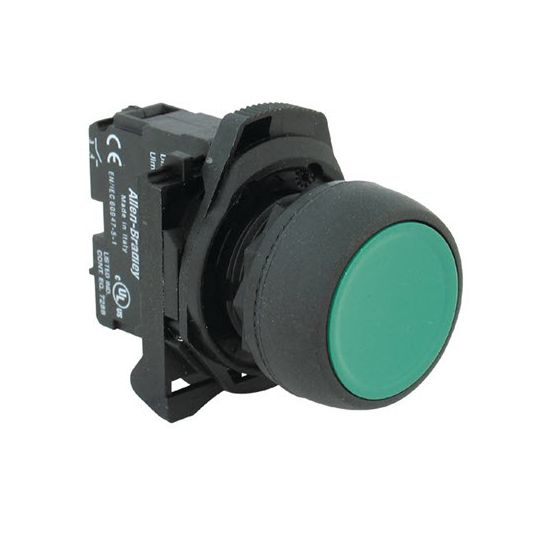

Allen-Bradley Pushbutton Actuator Only Flush Head Plastic Body k Non Illuminated Momentary 1N.O Green 22.5mm Panel Mount

Description

Pushbutton Actuator Only Flush Head Plastic Body, Size: 22.5 mm, 1NO, Non-Illuminated, Operating Travel: 2.5 mm, Momentary Action, Flush Head, Tightening Torque: 0.7 N/m, IP65, IP66, IP69K, Screw Terminal, Mounting Diameter: 22.5 mm, Panel Mount, Thermoplastic Housing, Glass-Filled Nylon/PA6/PA66 Bezel, Green, -25 to 70 deg C, 29.6 mm Diameter, 10 mm Depth

Key Specifications

Barcode (EAN-13)	10662468121382
SKU	ALB800FP-F3PX10
Brand	Allen-Bradley
Range Name	Bulletin 800F
Product Type	P/B Actuators Flush

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The 800F line of 22.5 mm push buttons is designed and manufactured to demanding performance specifications to ensure you receive optimized durability and performance 800FP operators are made of industrial grade thermoplastic for superior chemical resistance 800FM operators are constructed of tough die cast zinc alloy, finished with chromate plating that can be used in the most arduous applications
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	800FPF3PX10
Colour	Green
IP Rating	IP65/66/69
Contact Configuration	1 Normally Opened
Size	22.5 mm
Diameter	29.6 mm
Terminal Connection	Screw
Depth	10 mm
Temperature	-25 to 70 deg C
Mounting Method	Panel
Mounting Diameter	22.5 mm
Operating Travel	2.5 mm
Head Type	Flush
Operator Action	Non-Illuminated Momentary Action
Tightening Torque	0.7 N/m
