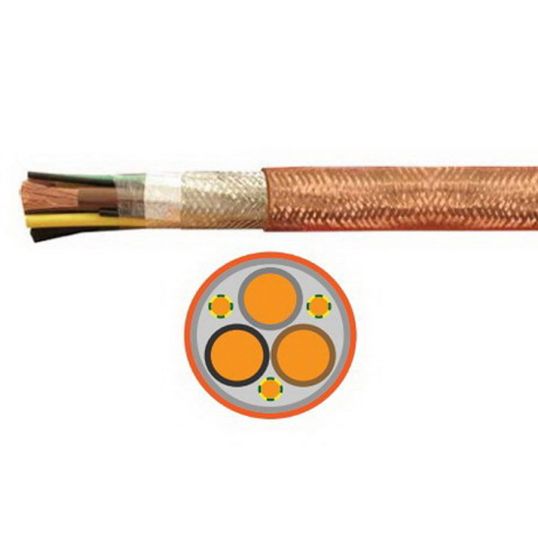

Treotham Treoflex Flexible Cable VSD EMC Screened 3 Core & 3 Earth 185 mm 0.6/1kV XLPE/Tinned Copper Braid/PVC

Description

VSD/EMC Cable, 185 mm, Class 5 Copper, 0.6-1 kV, 3 Core + 3 Earth, 55 mm Overall Diameter, 35 mm Earth Conductor, 550 mm Bend Radius, >200 MOhm/km Insulation Resistance, Tinned Copper Braid/Aluminium Foil/Polyester Tape Screen, Brown/Black/Grey/Green/Yellow Core, XLPE Insulation, Special PVC Sheath, Clear/Orange Sheath, -40 to 90 deg C, PN-EN 60228/PN-HD 383 S2/PN-N60332-1

Key Specifications

SKU	TRETA6.1850.03.3E
Brand	Treotham
Product Type	VSD/EMC Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Low capacitance Self extinguishing sheath UV resistant
Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	TA6.1850.03.3E
Bend Radius	550 mm
Conductor Size	185 mm
Conductor Type	Class 5 Copper
Core Colours	Black/Brown/Grey/Green/Yellow
Earth Conductor Size	35 mm
Insulation Material	XLPE
Insulation Resistance	>200 Mohm/km
Number of Cores	3 Core + 3 Earth
Overall Diameter	55 mm
Screen Material	Tinned Copper Braid/Aluminium Foil/Polyester Tape
Sheath Colour	Clear/Orange
Sheath Material	Special PVC
Standards	PN-EN 60228/PN-HD 383 S2/PN-N60332-1
Temperature	-40 to 90 deg C
Voltage	0.6-1 kV
