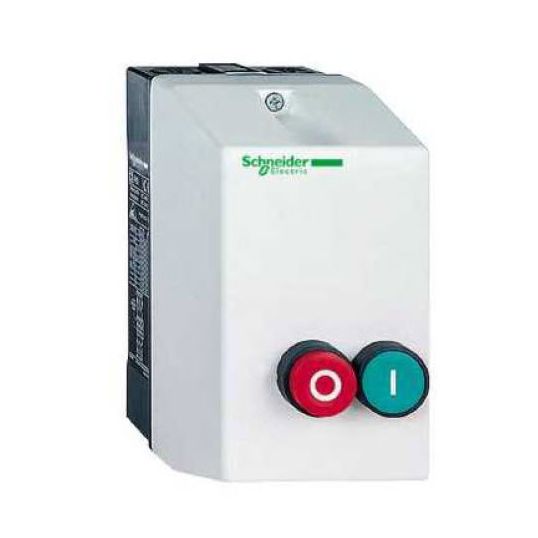

Schneider Motor Starter Direct On Line 10kW 220V Polycarbonate IP65
Loading...
Description
Motor Starter Direct On Line, 25 Amp, 50/60 Hz, 22 kW, 10 kW at 500 Volt AC, 220 Volt AC, Pushbutton Start Green I, Pushbutton Stop/Reset Red O, IP65, Polycarbonate, -5 to 40 deg C, 201 mm Height, 101 mm Width, 153.5 mm Depth, Overload Purchased Separately
Key Specifications
| Barcode (EAN-13) |
3389110578188
|
|---|---|
| SKU |
TEELE1D18M7
|
| Brand |
Schneider
|
| Range Name |
TeSys Model D
|
| Product Type |
Motor Starters DOL
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | LE1D18M7 |
| Coil Voltage | 220 Volt AC |
| Control Type | Pushbutton Start Green I/Pushbutton Stop-Reset Red O |
| Current | 25 Amp |
| Depth | 153.5 mm |
| Frequency | 50/60 Hz |
| Height | 201 mm |
| IP Rating | IP65 |
| Motor Power | 10 kW @ 500 Volt AC |
| Operating Temperature | -5 to 40 deg C |
| Please Note | Overload Purchased Separately |
| Wattage | 22 kW |
| Width | 101 mm |
