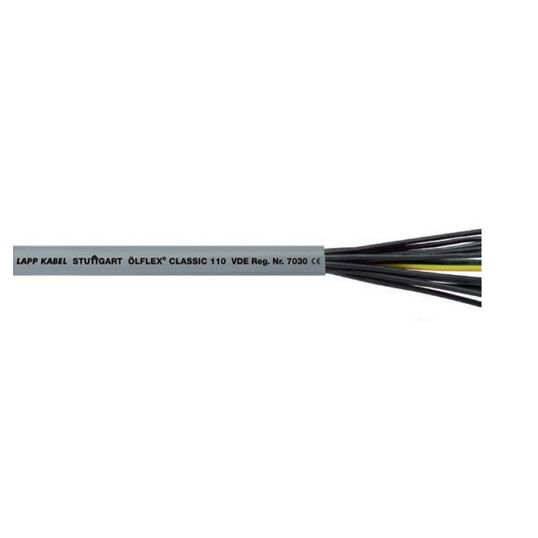

Lapp Kabel Olflex Classic 110 Flexible Control Cable Unscreened 5 Core 0.75mm 0.3/0.5kV Copper PVC/PVC Grey

Description

Flexible Control Cable, 0.75 mm, Bare Copper, 0.3-0.5 kV, 5 Core, 6.7 mm Overall Diameter, Static 26.8 mm Flexible 67 mm Bend Radius, 26 Ohm/km Conductor Resistance, Black/White Numerals Core, PVC Insulation, PVC Sheath, Grey Sheath, Static -40 to 80 deg C Flexible -15 to 70 deg C, IEC 60228 Class 5 EN 50525-2-51

Key Specifications

SKU	LAP1119805
Brand	Lapp Kabel
Range Name	Olflex Classic 110
Product Type	Flexible Control Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Flame retardant Good chemical resistance Oil resistant
Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	1119805
Bend Radius	Static 26.8 mm - Flexible 67 mm
Conductor Resistance	26 Ohm/km
Core Colours	Black/White Numerals
Conductor Size	0.75 mm
Conductor Type	Bare Copper
Insulation Material	PVC
Number of Cores	5 Core
Overall Diameter	6.7 mm
Sheath Colour	Grey
Sheath Material	PVC
Standards	IEC 60228 Class 5 EN 50525-2-51
Temperature	Static -40 to 80 deg C Flexible -15 to 70 deg C
Voltage	0.3-0.5 kV
