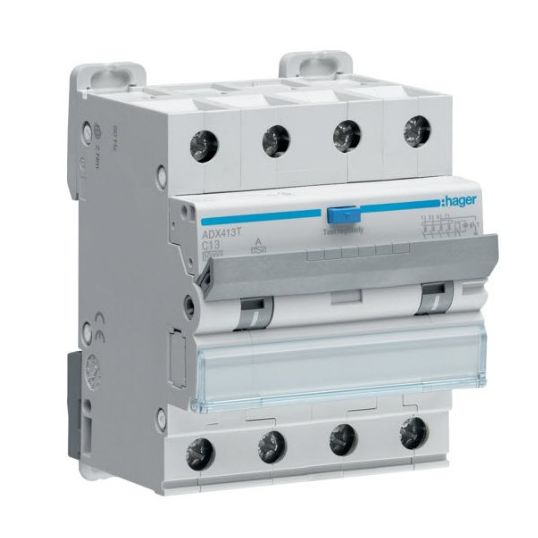

Hager Combination RCD Circuit Breaker RCBO 4Pole 32 Amp 230/400-240/415VAC 10 kA DIN Rail

Description

Combination RCD Circuit Breaker RCBO Type A, 32 Amp, 230/400-240/415 Volt AC, 50 Hz, Interrupt Capacity: 10 kA, Trip Sensitivity: 30 mA, Number of Poles: 4, Trip Characteristic: C Curve, 1/16 mm Flexible, 1/25 mm Rigid Terminal Connection, Screw, IP20, DIN Rail,-55 to 70 deg C, 84mm Height, 71mm Width, 70mm Depth

Key Specifications

Barcode (EAN-13)	3250611033134
SKU	HAGADX432T
Brand	Hager
Product Type	Combination RCBO

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	ADX432T
Current	32 Amp
Connection Type	Screw
Height	84mm
Depth	70mm
Frequency	50 Hz
Interrupt Capacity	10 kA
Mounting Method	DIN Rail
IP Rating	IP20
Number Of Poles	4 Pole
Temperature	-55 to 70 deg C
Trip Characteristic	C Curve
Terminal Connection	1/16 sq-mm Flexible/ 1/25 sq-mm Rigid
Trip Sensitivity	30 mA
Voltage	230-400-240-415 Volt
Width	71mm
