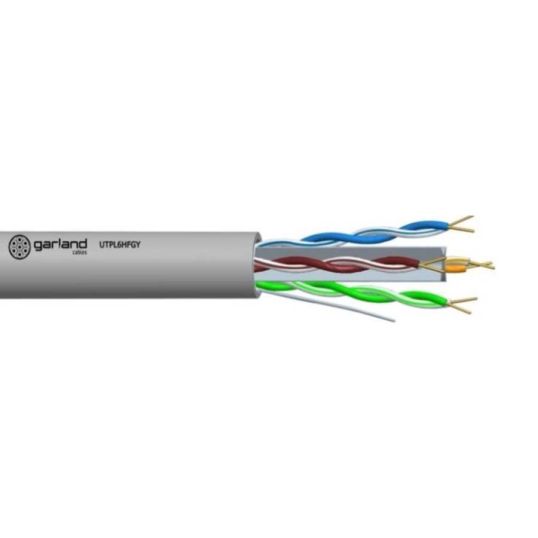

Garland Pro Series UTP Data Cable Cat6 4 Pair 23AWG HDPE/LSZH Blue 305M
Description
Key Specifications
Barcode (EAN-13) |
9329849010577
|
---|---|
SKU |
GARUTPL6HFBL305RB
|
Brand |
Garland
|
Product Type |
Cat6 Cable
|
Technical Specifications
Additional Information
Standard Pack Size | 305 |
---|---|
UNSPSC Class | 26121600 |
UOM | MTR |
Vendor Product | UTPL6HFBL305RB-NLA |
Cable Type | Cat6 UTP |
Bend Radius | Static: 62mm |
Conductor Diameter | 0.56mm |
Conductor Resistance | 7.3 Ohm/100 mtr at 20 deg C |
Conductor Size | 23 AWG/0.25 mm |
Conductor Material | PACW |
Filler Material | Cross-Web Separator/Rip Cord |
Insulation Material | HDPE |
Max. Pulling Force | 142 N |
Pair Count | 4 Pair |
Outside Diameter | 6.2mm |
Sheath Colour | Blue |
Sheath Material | LSZH |
Stranding | 1/0.56mm |
Temperature | -15 to 75 deg C |
