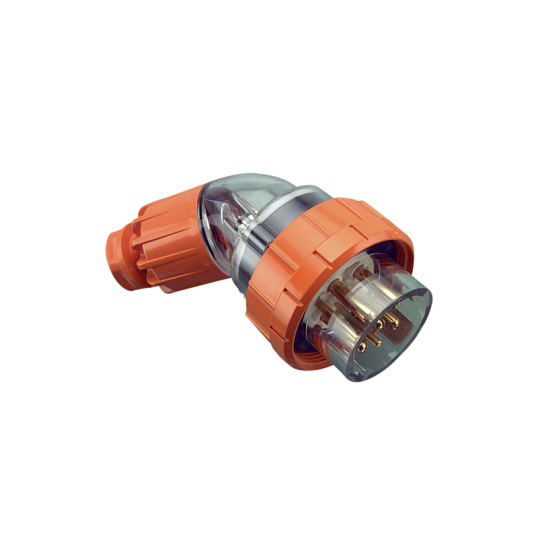

Clipsal 56 Series Plug Angled Body Weatherproof 3Ph 10A 500V 7 Pin Round Chemical Resistant Orange IP66
Loading...
Description
Plug Angled Body Weatherproof, 3 Phase, 10 Amp, 500 Volt AC, 7 Pin Round, Chemical Resistant Orange, IP66, Screw, Terminal Capacity: 1 to 6 mm, Cable Gland, M25 Cable Gland, PBT, -25 to 75 deg C, 78 mm Height, 126.5 mm Width, 158 mm Depth
Key Specifications
| Barcode (EAN-13) |
9311554237639
|
|---|---|
| SKU |
CLI56PA710RO
|
| Brand |
Clipsal
|
| Range Name |
56 Series
|
| Product Type |
Plugs Angled
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 56PA710-RO |
| Cable Entry | Cable Gland |
| Cable Gland Size | M25 |
| Connection Type | Screw |
| Colour | Chemical Resistant Orange |
| Current | 10 Amp |
| Depth | 158 mm |
| Height | 78 mm |
| IP Rating | IP66 |
| Phase | 3 Phase |
| Pin Configuration | 7 Pin Round |
| Temperature | -25 to 75 deg C |
| Terminal Capacity | 1 to 6 sq-mm |
| Voltage | 500 Volt |
| Width | 126.5 mm |
