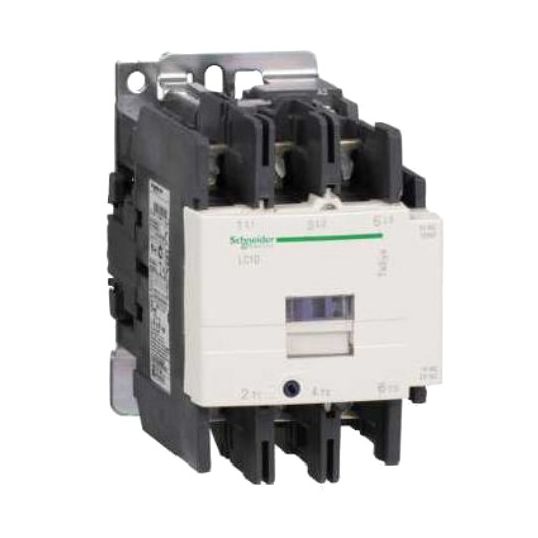

Schneider Contactor General Purpose AC Operated 3 Pole 45kW 80A AC3 125A AC1 24V 1NO-1NC Auxilary DIN Rail/Plate Mount

Description

Contactor General Purpose AC Operated, 24 Volt AC, AC3 Rating (kW): 45, AC3 Rating (Amps): 80 at 440 Volt AC, AC1 Rating (Amps): 125 at 440 Volt AC, 690 Volt AC, 300 Volt DC, 1NO-1NC Auxiliary, 3 Pole, Operating Time: 20-35 ms Closing, 6-20 ms Opening, Screw Clamp, DIN Rail/Plate Mount, IP20, -40 to 60 deg C, 127 mm Height, 85 mm Width, 130 mm Depth

Key Specifications

Barcode (EAN-13)	3389110440034
SKU	TEELC1-D80B7
Brand	Schneider
Range Name	TeSys Model D
Product Type	Contactors General

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	LC1D80B7
AC1 Rating (Amps)	125 Amp AC1
AC3 Rating (Amps)	80 Amp AC3
AC3 Rating (kW)	45 kW
Contact Configuration	1 Normally Opened & 1 Normally Closed Aux
Contact Voltage	690 Volt AC/300 Volt DC
Depth	130 mm
Height	127 mm
IP Rating	IP20
Mounting Method	DIN Rail/Plate
Number Of Poles	3 Pole
Operating Coil Voltage	24 Volt AC
Operating Time	20-35 ms Closing/6-20 ms Opening
Temperature	-40 to 60 deg C
Terminal Connection	Screw Clamp
Width	85 mm
