Motor Starter Soft Start Soft Stop 3 Phase 30kW 415V

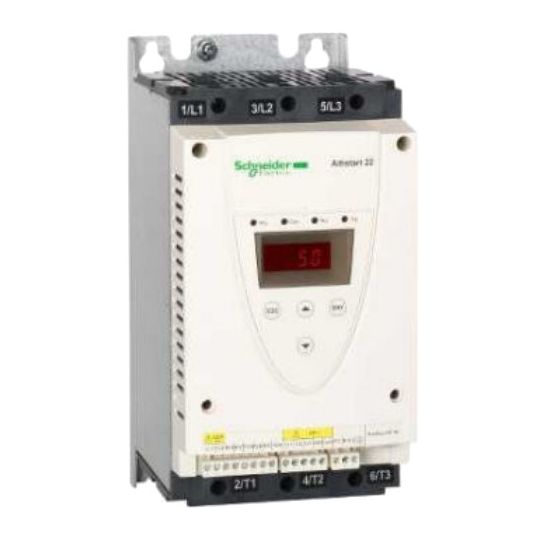

Schneider Motor Starter Soft Start Soft Stop 3 Phase 30kW 415V


Std Pack Size

You need to be registered and logged in to view product details and pricing

Motor Starter Soft Start Soft Stop 3 Phase, 230-440 Volt, 57 Amp, 50/60 Hz, 30 kW, 15 kW @ 230 Volt, 30 kW @ 400/440 Volt, 230 Volt, 3 Phase, IP20, Start With Torque Control, -10 to 40 deg C/40 to 60 deg C, 295 mm Height, 145 mm Width, 207 mm Depth

Additional Information

Additional Information
Brand Schneider
Range Name Altistart 22
Standard Pack Size 1
UNSPSC Class 39121500
Vendor Product ATS22D62Q
Control Voltage Control 230 Volt
Height 295 mm
Depth 207 mm
Frequency 50-60 Hz
IP Rating IP20
Phase 3 Phase
Motor Power 15 kW @ 230 Volt/30 kW @ 400/440 Volt
Product Type Motor Starters Soft Start
Supply Voltage Supply 230-440 Volt
Starting Modes Start With Torque Control
Wattage 30 kW
Temperature -10-40 deg C/40-60 deg C
Width 145 mm
Current 57 Amp
