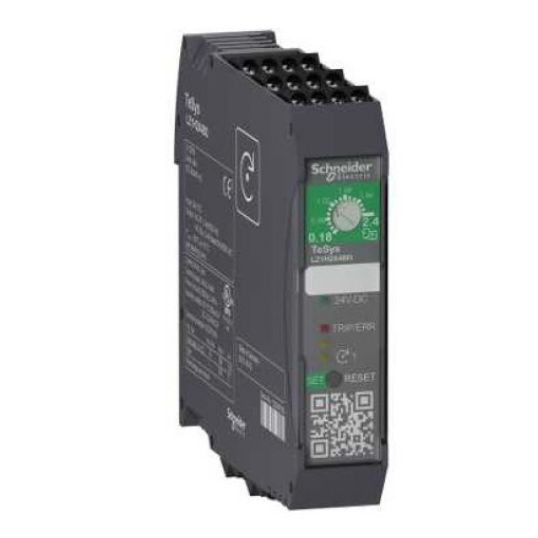

Schneider Motor Starter Reversing Direct On Line 3.0kW 6.5/9/5/7A 24VDC IP20

chevron-left
loader
Loading...

Description

chevron-down
Motor Starter Reversing Direct On Line, 500 Volt AC, 6.5 Amp, 9 Amp, 5 Amp, 7 Amp, 50/60 Hz, 3 kW, 1.5 kW at 220/230/380 Volt AC, 3 kW at 400/415/440/500 Volt AC, 24 Volt DC, Setting Range: 1.5-9 Amp, Manual/Automatic/Electrical Reset, Screw Clamp, IP20, Direct On Line, DIN Mount, -25 to 70, -40 to 80 deg C, 99 mm Height x 22.5 mm Width x 114.5 mm Depth

Key Specifications

chevron-down
Barcode (EAN-13)
3606485421216
SKU
SHNLZ2H6X5BD
Brand
Schneider
Range Name
TeSys
Product Type
Motor Starters Reversing

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 1
UNSPSC Class 39121500
UOM EA
Vendor Product LZ2H6X5BD
Coil Voltage 24 Volt DC
Connection Type Screw Clamp
Current 6.5/9/5/7 Amp
Depth 114.5 mm
Frequency 50/60 Hz
Height 99 mm
IP Rating IP20
Motor Power 1.5 kW @ 220-230-380 Volt AC/3 kW @ 400-415-440-500 Volt AC
Operating Temperature -40 to 80 deg C
Voltage 500 Volt AC
Wattage 3 kW
Width 22.5 mm
