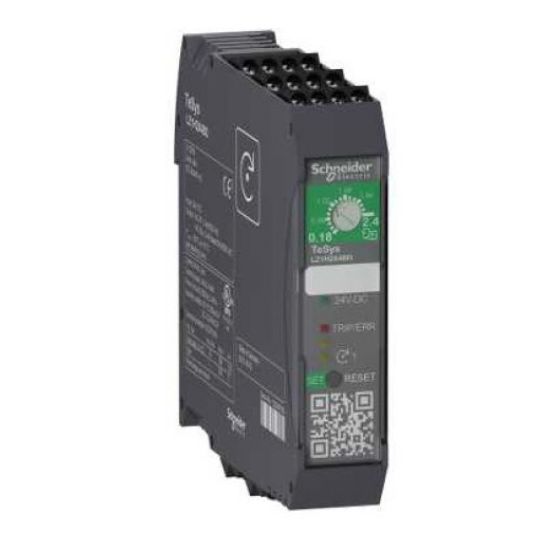

Schneider Motor Starter Reversing Direct On Line 0.75kW 2.4A 110-230V IP20

chevron-left
loader
Loading...

Description

chevron-down
Motor Starter Reversing Direct On Line, 500 Volt AC, 2.4 Amp, 50/60 Hz, 0.75 kW, 0.37 kW at 220 Volt AC, 1.1 kW at 500 Volt AC, 110-230 Volt AC, Setting Range: 0.18-2.4 Amp, Manual/Automatic/Electrical Reset, Screw Clamp, IP20, Direct On Line, DIN Mount, -25 to 70, -40 to 80 deg C, 99 mm Height x 22.5 mm Width x 114.5 mm Depth

Key Specifications

chevron-down
Barcode (EAN-13)
3606485421070
SKU
SHNLZ2H2X4FU
Brand
Schneider
Range Name
TeSys
Product Type
Motor Starters Reversing

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 1
UNSPSC Class 39121500
UOM EA
Vendor Product LZ2H2X4FU
Coil Voltage 110-230 Volt AC
Connection Type Screw Clamp
Current 2.4 Amp
Depth 114.5 mm
Frequency 50/60 Hz
Height 99 mm
IP Rating IP20
Motor Power 0.37 kW @ 220 Volt AC/1.1 kW @ 500 Volt AC
Operating Temperature -40 to 80 deg C
Voltage 500 Volt AC
Wattage 0.75 kW
Width 22.5 mm
