Std Pack Size
1
OUR P/N:
LOVBF3200A024

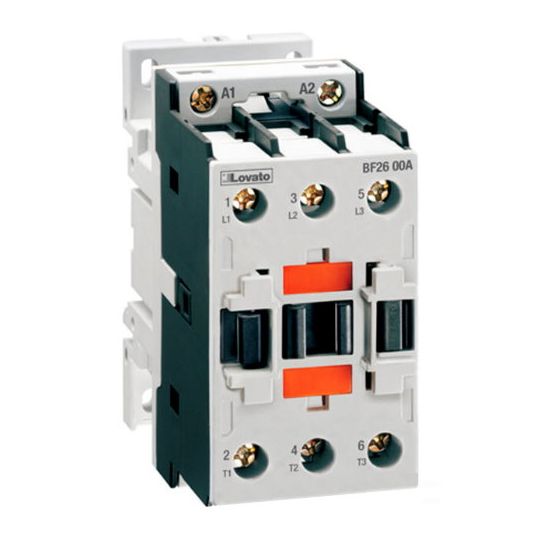

Contactor General Purpose AC Operated, 24 Volt AC, AC3 Rating (kW): 22 at 55 deg C, AC3 Rating (Amps): 32, AC1 Rating (Amps): 56, 690 Volt, 3 Pole, Screw Terminal, DIN Rail/Base Mount, IP20, -50 to 70 deg C, 134.8 mm Height, 45 mm Width, 90 mm Depth
Additional Information
| Brand | Lovato |
|---|---|
| Range Name | Orange BF |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | LOVBF3200A024 |
| AC1 Rating (Amps) | 56 Amp AC1 |
| AC3 Rating (Amps) | 32 Amp AC3 |
| AC3 Rating (kW) | 22 kW |
| Contact Voltage | 690 Volt |
| Height | 134.8 mm |
| IP Rating | IP20 |
| Depth | 90 mm |
| Number Of Poles | 3 Pole |
| Mounting Method | DIN Rail/Base |
| Operating Coil Voltage | 24 Volt AC |
| Temperature | -50 to 70 deg C |
| Product Type | Contactors General |
| Width | 45 mm |
| Terminal Connection | Screw |
