Std Pack Size
1
OUR P/N:
LOVBF0910A240

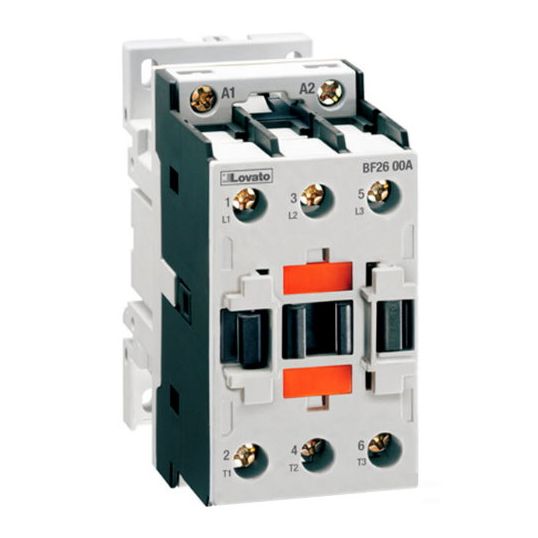

Contactor General Purpose AC Operated, 240 Volt AC, AC3 Rating (kW): 7.5 at 55 deg C, AC3 Rating (Amps): 9, AC1 Rating (Amps): 25, 690 Volt, 1NO Auxiliary, 3 Pole, Screw Terminal, DIN Rail/Base Mount, IP20, -50 to 70 deg C, 126 mm Height, 45 mm Width, 80.7 mm Depth
Additional Information
| Brand | Lovato |
|---|---|
| Range Name | Orange BF |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | LOVBF0910A240 |
| AC1 Rating (Amps) | 25 Amp AC1 |
| AC3 Rating (Amps) | 9 Amp AC3 |
| AC3 Rating (kW) | 7.5 kW |
| Contact Configuration | 1 Normally Opened Aux |
| Contact Voltage | 690 Volt |
| Height | 126 mm |
| IP Rating | IP20 |
| Depth | 80.7 mm |
| Number Of Poles | 3 Pole |
| Mounting Method | DIN Rail/Base |
| Operating Coil Voltage | 240 Volt AC |
| Temperature | -50 to 70 deg C |
| Product Type | Contactors General |
| Width | 45 mm |
| Terminal Connection | Screw |
