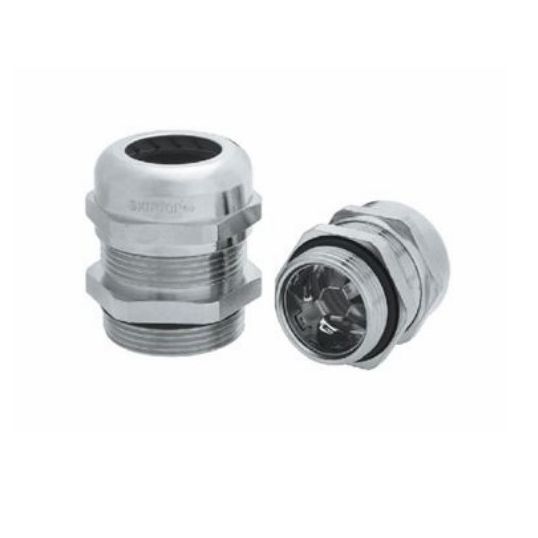

Lapp Kabel Cable Gland EMC VSD Screened Cable M20 x 1.5 7-12.5mm IP68

chevron-left
loader
Loading...

Description

chevron-down
Cable Gland, EMC VSD Screened Cable, M20 x 1.5, 8 mm Thread Length, 1.5 mm Pitch, 7 mm Min. Sheath OD, 12.5 mm Max. Sheath OD, IP68, CR Seal, Brass Body, Nickel Plated Finish, -25 to 100 deg C (Dynamic), -40 to 100 deg C (Fixed)

Key Specifications

chevron-down
SKU
LAP53112630
Brand
Lapp Kabel
Range Name
Skintop MS-SC-M
Product Type
Cable Glands EMC

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Low-resistance screen contact, optimum EMC protection
  • Suitable for cables with and without inner sheath
  • Highly conductive, flexible EMC contact for clamping various screen diameters
  • Few operation steps, easy to assemble
  • Also suitable for continuing the cable screen to another connection
  • For telecommunication, industrial machinery and plant engineering, measurement and control technology, automation technology, EMC-compliant earthing of the copper braiding, or for cables with copper shaft sheath
  • NBR O-ring
  • Polyamide insert
Standard Pack Size 25
UNSPSC Class 39121400
UOM EA
Vendor Product 53112630
Body Material Brass
Finish Nickel Plated
IP Rating IP68
Max. Sheath OD 12.5 mm
Min. Sheath OD 7 mm
Seal Material CR
Temperature -25 to 100 deg C (Dynamic) -40 to 100 deg C (Fixed)
Thread Length 8 mm
Thread Pitch 1.5 mm
Thread Size M20 x 1.5
