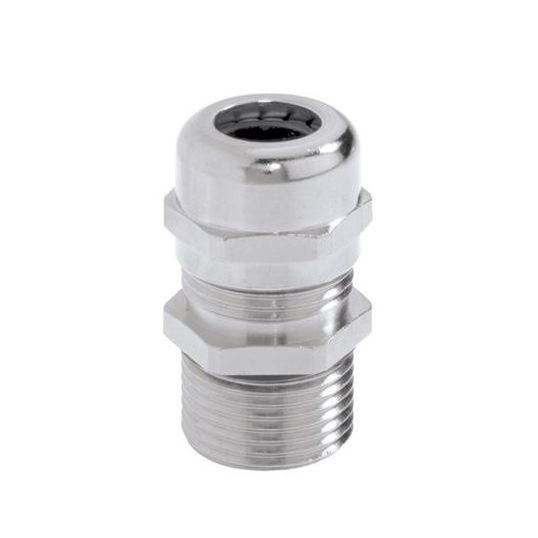

Lapp Kabel Cable Gland EMC VSD Screened Cable Extra Long Thread M16 x 1.5 4.5-9mm IP68

chevron-left
loader
Loading...

Description

chevron-down
Cable Gland, EMC VSD Screened Cable, Extra Long Thread, M16 x 1.5, 12 mm Thread Length, 1.5 mm Pitch, 4.5 mm Min. Sheath OD, 9 mm Max. Sheath OD, IP68, CR Seal, Brass Body, Nickel Plated Finish, -25 to 100 deg C (Dynamic), -40 to 100 deg C (Fixed)

Key Specifications

chevron-down
SKU
LAP53112625
Brand
Lapp Kabel
Range Name
Skintop MS-SC-M-XL
Product Type
Cable Glands EMC

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Low-resistance screen contact, optimum EMC protection
  • Suitable for cables with and without inner sheath
  • Highly conductive, flexible EMC contact for clamping various screen diameters
  • Few operation steps, easy to assemble
  • Also suitable for continuing the cable screen to another connection
  • For telecommunication, industrial machinery and plant engineering, measurement and control technology, automation technology, EMC-compliant earthing of the copper braiding, or for cables with copper shaft sheath
  • NBR O-ring
  • Polyamide insert
Standard Pack Size 50
UNSPSC Class 39121400
UOM EA
Vendor Product 53112625
Body Material Brass
Finish Nickel Plated
IP Rating IP68
Max. Sheath OD 9 mm
Min. Sheath OD 4.5 mm
Seal Material CR
Temperature -25 to 100 deg C (Dynamic) -40 to 100 deg C (Fixed)
Thread Length 12 mm
Thread Pitch 1.5 mm
Thread Size M16 x 1.5
