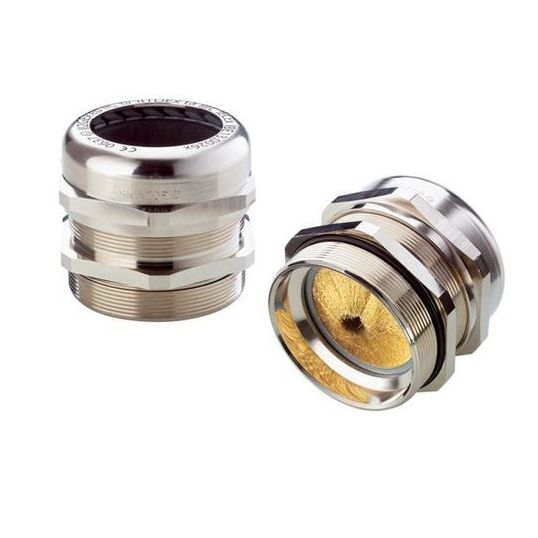

Lapp Kabel Cable Gland EMC VSD Screened Cable M75 x 1.5 53-63mm IP68

$Lapp_Kabel\Lapp_Kabel_53112500-2505.jpg$

Description

Cable Gland, EMC VSD Screened Cable, M75 x 1.5, 15 mm Thread Length, 1.5 mm Pitch, 53 mm Min. Sheath OD, 63 mm Max. Sheath OD, IP68, Special Elastomer Seal, Brass Body, Nickel Plated Finish, -25 to 100 deg C (Dynamic), -40 to 100 deg C (Fixed)

Key Specifications

SKU	LAP53112501
Brand	Lapp Kabel
Range Name	Skintop MS-M Brush
Product Type	Cable Glands EMC

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Faster, easier screen contact Optimum, low-resistance 360 deg screen contact Faster than any other comparable system Uncomplicated and reliable Maximum assembly freedom during adjustment For EMC-compliant earthing of the copper braiding, or for cables with copper shaft sheath, automation systems, high-power drives, frequency converters, conveyor and transport systems Special elastomer O-ring Brass EMC brush
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	53112501
Finish	Nickel Plated
Body Material	Brass
IP Rating	IP68
Min. Sheath OD	53 mm
Max. Sheath OD	63 mm
Temperature	-25 to 100 deg C (Dynamic) -40 to 100 deg C (Fixed)
Seal Material	Special Elastomer
Thread Pitch	1.5 mm
Thread Length	15 mm
Thread Size	M75 x 1.5
