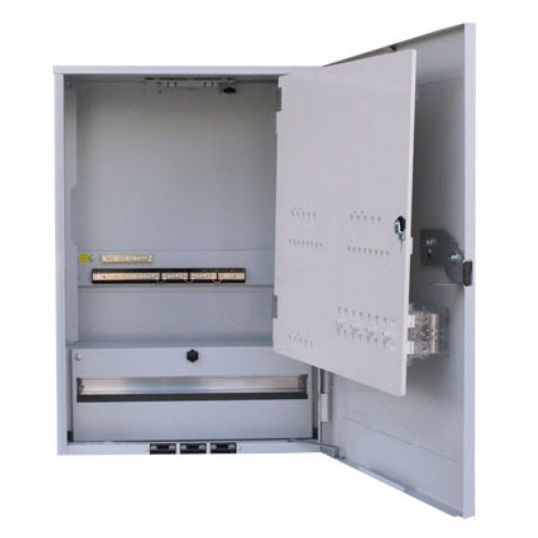

Hager Meter Box North Queensland 24 Pole W488mm H688mm D278mm DIN-Rail Mount Steel Galvanised

Description

Meter Box North Queensland, 24 Poles, 688mm Height, 488mm Width, 278mm Depth, 480mm Panel Height, 460mm Panel Width, Stop Removable Door, Padlock Lock, DIN-Rail, Steel, Galvanised

Key Specifications

Barcode (EAN-13)	3250611005377
SKU	HAGVYMBQ
Brand	Hager
Product Type	Meter Boxes Domestic

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	1.2 mtr galvanised steel powder coated RAL 276mm deep (75mm behind panel) Flush door opening mechanism Full UV stable cable entry cover Door tab to stop removal of door (AS3012) Knockout for padlock tab Gravity door catch Strong 1.6mm steel hinges Simple door retainer Patented cable retainer with close off caps (for 3 leads)
Standard Pack Size	1
UNSPSC Class	39121100
UOM	EA
Vendor Product	VYMBQ
Door Type	Stop Removable
Enclosure Depth	278mm
Enclosure Height	688mm
Enclosure Width	488mm
Finish	Galvanised
Lock Type	Padlock
Material	Steel
Mounting Method	DIN Rail
Number Of Poles	24 Pole
Panel Height	480mm
Panel Width	460mm
