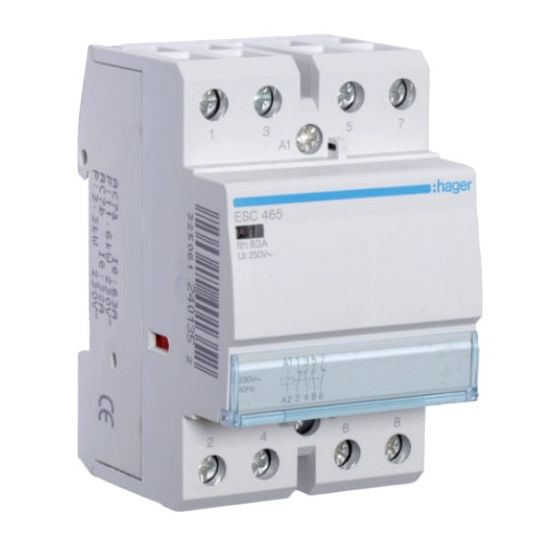

Hager DIN Contactor 4 Pole 32A AC3 63A AC1 230V 2NO-2NC DIN Rail Mount

Description

Contactor, 230 Volt AC Coil Voltage, 230 Volt Control Circuit, 1 Normally Opened/1 Normally Closed Configuration, 32 Amp AC3 AC3 Rating, 63 Amp AC1 AC1 Rating, 4 Pole, 25 ms Closing/20 ms Opening Operating Time, Screw Terminal, DIN Rail Mounting, IP2X, -10 to 50 deg C, 85 mm Height, 54 mm Width, 60 mm Depth

Key Specifications

Barcode (EAN-13)	3250612401352
SKU	HAGESC465
Brand	Hager
Product Type	Contactors General

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Contactors remote switching and control of power circuits Suitable for lighting, heating, ventilation, pumps and home automation Manual override to set output contacts permanently on or off-great for fault finding Night and Day override allows the End User to set output contact permanently Off or temporarily On until next switching cycle
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	ESC465
AC1 Rating (Amps)	63 Amp AC1
AC3 Rating (Amps)	32 Amp AC3
Contact Configuration	1 Normally Opened/1 Normally Closed
Control Circuit Voltage	230 Volt
Depth	60 mm
Height	85 mm
IP Rating	IP2X
Mounting Method	DIN Rail
Number Of Poles	4 Pole
Operating Coil Voltage	230 Volt AC
Operating Time	25 ms Closing/20 ms Opening
Temperature	-10 to 50 deg C
Terminal Connection	Screw
Width	54 mm
