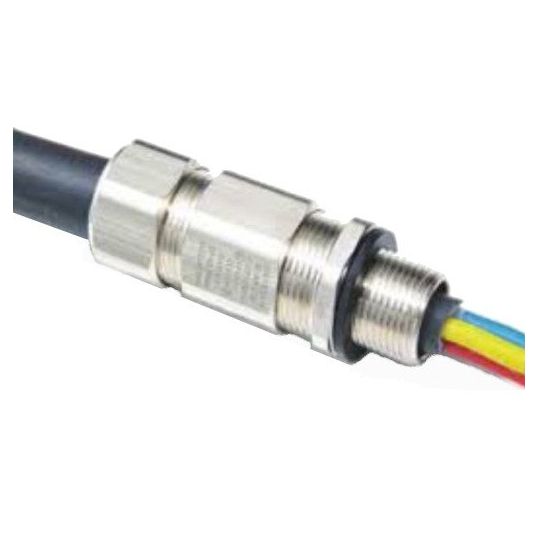

CCG Cable Gland Barrier Type Armoured M40 28-40mm IP66/68
Loading...
Description
Cable Gland, Barrier Type, Armoured, M40, 15 mm Thread Length, 1.5 mm Pitch, 28 mm Min. Sheath OD, 40 mm Max. Sheath OD, 55 mm Width Across Flats, 62 mm Width Across Corners, 0.3 mm Min. Armour Wire, 2 mm Max. Armour Wire, 52 Nm, IP66/68, Thermoplastic Elastomer Seal, Brass Body, Nickel Plated Finish, -20 to 95 deg C, 120 mm Length
Key Specifications
| SKU |
CCG057104
|
|---|---|
| Brand |
CCG
|
| Range Name |
Type E1EX
|
| Product Type |
Cable Glands Hazardous Area
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 057104 |
| Body Material | Brass |
| Finish | Nickel Plated |
| IP Rating | IP66/68 |
| Max. Armour Wire | 2 mm |
| Max. Sheath OD | 40 mm |
| Min. Sheath OD | 28 mm |
| Min. Armour Wire | 0.3 mm |
| Seal Material | Thermoplastic Elastomer |
| Temperature | -20 to 95 deg C |
| Thread Length | 15 mm |
| Thread Pitch | 1.5 mm |
| Thread Size | M40 |
| Torque Rating | 52 Nm |
| Width Across Corners | 62 mm |
| Width Across Flats | 55 mm |
