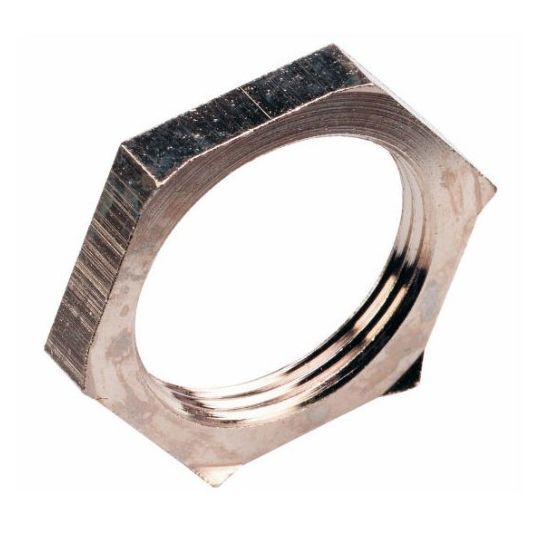

Cabac EMC Cable Gland Locknut Hex Barbed M20 Nickel Plated Brass

Description

The CABAC EMC Locknut series is engineered to enhance the performance of EMC glands in industrial applications. Constructed from nickel-plated, lead-free brass (CuZn21Si3P), these locknuts provide superior corrosion resistance and secure tightening, ensuring optimal electrical contact even through surface coatings. The sharp barbs are specifically designed to cut an earthling path into metal enclosures, effectively penetrating paint layers or powder coatings, which ensures optimal equipotential bonding and increased vibration resistance. When used with CABAC's Brass EMC Metric Glands, the assembly meets the IP68 rating for maximum environmental protection.

Key Specifications

Barcode (EAN-13)	9318674627784
SKU	CAALNM20EMC
Brand	Cabac

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Nickel plated brass locknut designed for securing EMC cable glands in metal enclosures Features sharp barbs that cut through paint or powder coatings for reliable earthling Ensures optimal electrical contact and equipotential bonding Provides enhanced vibration resistance for stable installations Compatible with CABAC Brass EMC Metric Glands for achieving IP68 protection, Material: Lead-free brass (CuZn21Si3P), nickel-plated Internal thread: metric, as per EN 60423
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	LNM20EMC
Body Material	Brass
Finish	Nickel Plated
IP Rating	IP68
For Use With	GU20EMC/L Terminals
Temperature	-60 to 120 deg C
Thread Size	M20
