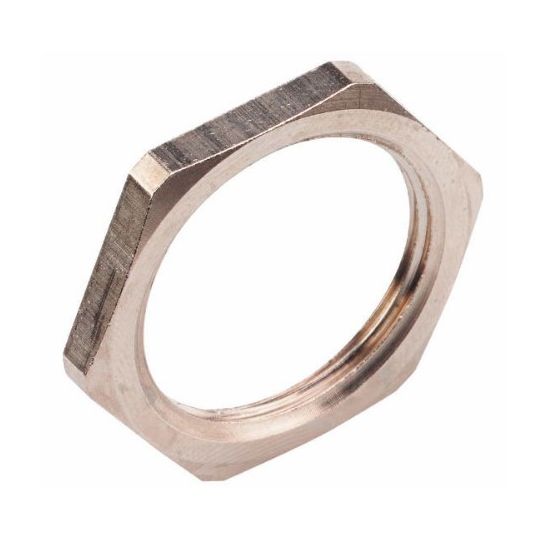

Cabac Cable Gland Locknut Hex M16 Nickel Plated Brass

chevron-left
loader
Loading...

Description

chevron-down
M16 metric lock nut to suit CABAC metal glands. Made from nickel plated brass to prevent corrosion. When used in conjunction with a matching gland the full assembly meets with IP68 or IP66 protection (depending on the gland).

Key Specifications

chevron-down
Barcode (EAN-13)
9318674627753
SKU
CAALNM16
Brand
Cabac
Product Type
Gland Accessories

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • When used in conjunction with metric metal unarmoured cable glands the complete assembly meets with IP68 or IP66 rating depending on the gland
  • Nickel plated brass for corrosion protection
  • As a standard metal glands are not supplied with a locknut
Standard Pack Size 1
UNSPSC Class 39121400
UOM EA
Vendor Product LNM16
Body Material Brass
Finish Nickel Plated
IP Rating IP66/68
For Use With GU16 Terminals
Mounting Hole Diameter 16 mm
Thread Size M16
Width Across Flats 17 mm
