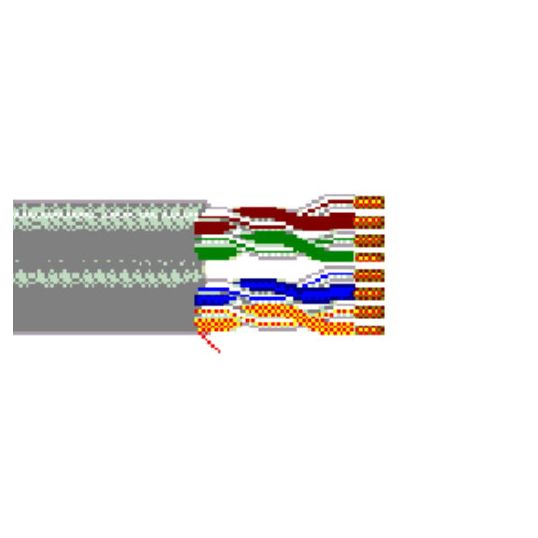

Belden 1872A U/UTP Data Cable Cat6 Multi-Conductor 4 Pair Bonded 23AWG Polyolefin/PVC Light Blue 305M

$Belden\Belden_BEL1872A.jpg$

Description

U/UTP Data Cable Cat6 4 Pair Bonded, 300 Volt RMS, 23 AWG, 9 Ohm/100 mtr at 20 deg C Conductor Resistance, Bend Radius: 25.4mm, 200.169 N Max. Pulling Force, 4 Pair, 500 MHz Bandwidth, Cat6 Cable, Solid Bare Copper Conductor, Polyolefin Insulation, PVC Sheath, Light Blue Sheath,-20 to 80 deg C, 305 mtr Length, 9.271mm x 4.191mm Outside Diameter

Key Specifications

SKU	BEL1872A006A1000
Brand	Belden
Product Type	Cat6 Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	305
UNSPSC Class	26121600
UOM	MTR
Vendor Product	1872A 006A1000
Conductor Material	Solid Bare Copper
Cable Type	Cat6
Conductor Resistance	9 Ohm/100 mtr at 20 deg C
Bend Radius	25.4 mm
Conductor Size	23 AWG
Frequency Bandwidth	500 MHz
Insulation Material	Polyolefin
Max. Pulling Force	200.169 N
Outside Diameter	9.271 mm x 4.191 mm
Pair Count	4 Pair
Sheath Colour	Light Blue
Sheath Material	PVC
Temperature	-20 to 80 deg C
Voltage	300 Volt
