Std Pack Size
1
OUR P/N:
ACCW2748BLU

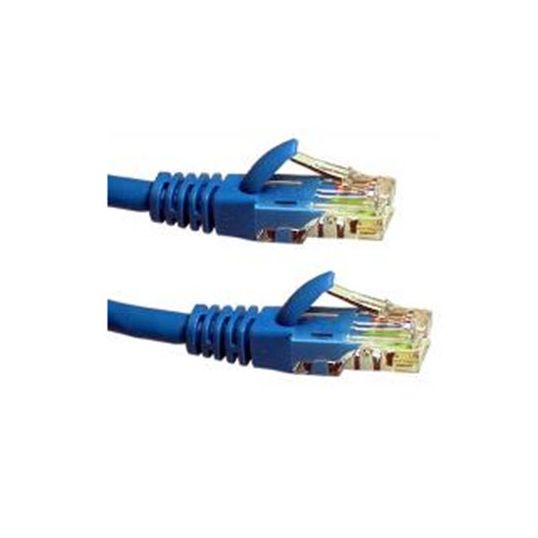

UTP Patch Cord Cat6, Connector A: RJ45 Plug, Connector B: RJ45 Plug, 4 Pair, 24 AWG Conductor, Stranded Conductor, 5.5mm (+/-0.3mm) OD, 1.5 mtr Cord Length, Attenuation: 2.4-39.4 dB (+/-15% dB), 300 V, 250 MHz, Insulation Resistance: > 200 MOhm at 20 deg C Min, Wiring Scheme: T568A, Oxygen-Free Bare Copper Conductor, SPE Insulation, FR-PVC Sheath, Contact Material: Gold Plated, Blue Sheath, 75 deg C
Additional Information
| Brand | Access Communications |
|---|---|
| Range Name | Datamaster |
| Standard Pack Size | 1 |
| UNSPSC Class | 43223300 |
| UOM | EA |
| Vendor Product | W2748BLU |
| Cord Length | 1.5 mtr |
| Sheath Colour | Blue |
| Product Type | Cat6 Patch Cord |
| Connector A | RJ45 |
| Temperature | 75 deg C |
| Contact Material | Gold Plated |
| Conductor Size | 24 AWG |
| Connector B | RJ45 |
| Frequency Bandwidth | 250 MHz |
| Sheath Material | FR-PVC |
| Pair Count | 4 Pair |
| Insulation Resistance | > 200 MOhm at 20 deg C Min |
| Outside Diameter | 5.5mm (+/-0.3mm) |
| Wiring Scheme | T568A |
| Conductor Material | Oxygen-Free Bare Copper |
| Insulation Material | SPE |
| Voltage | 300 Volt |
