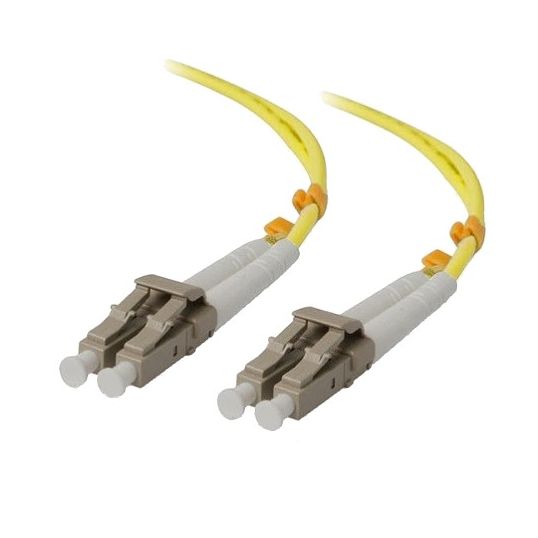

Serveredge Fibre Optic Patch Lead Duplex Single-Mode OS2 9um/125um LC-LC LSZH Yellow 10m

Description

Fibre Optic Patch Lead, Duplex Single-Mode, Connector A: LC, Connector B: LC, 2 Fibre Count, Single-Mode, Fibre Type: 9 um Fibre 125 um Buffer OS2, 10 mtr Cord Length, 3mm OD, Insertion Loss: <0.3 dB/300 m at 1550/1300 nm, Corning Inficore 300 Glass Fibre Material, LSZH Sheath, Ceramic Contact, Yellow Sheath

Key Specifications

Barcode (EAN-13)	9350784006431
SKU	SEVLCLC-10-OS2
Brand	Serveredge
Product Type	Patch Leads Fibre

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Single Mode OS2 fibre optic cable Compliant to fibre type B1.3 in IEC 60793-2-50 & G652d Low Smoke Zero Halogen Jacket for minimal toxic emissions in case of fire 100% optically tested and provided with test reports
Standard Pack Size	1
UNSPSC Class	43223300
UOM	EA
Vendor Product	LCLC-10-OS2
Connector A	LC
Connector B	LC
Contact Material	Ceramic
Cord Length	10 mtr
Fibre Count	2
Fibre Material	Corning Inficore 300 Glass
Fibre Mode	Single-Mode
Fibre Type	9 um Fibre 125 um Buffer OS2
Insertion Loss	<0.3 dB/300 m at 1550/1300 nm
Outside Diameter	3mm
Sheath Material	LSZH
Sheath Colour	Yellow
