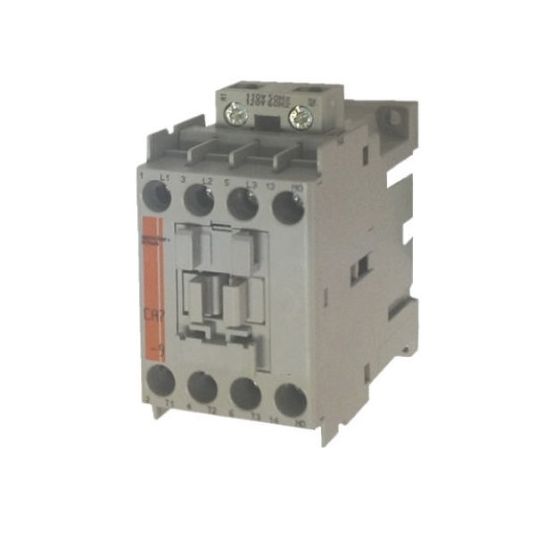

Contactor General Purpose AC Operated Non-Reversing 4 Pole 11kW 23A AC3 32A AC1 440V 2NO-2NC Main DIN Rail Mount

Description

Contactor General Purpose AC Operated Non-Reversing Standard, 440 Volt AC, AC3 Rating (kW): 11 at 415 Volt, 10 at 690 Volt, AC3 Rating (Amps): 23 at 415 Volt, 12 at 690 Volt, AC1 Rating (Amps): 32 at 415 Volt, 2NO-2NC Main, 4 Pole, DIN Rail Mount, IP20, 80 mm Height, 45 mm Width, Conventional Coil

Key Specifications

Barcode (EAN-13)	9321807177827
SKU	S&SCA7-23-M22/440VAC
Brand	Sprecher+Schuh
Range Name	CA7
Product Type	Contactors Non-Reversing

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Several contactor families provide a wide variety of contactor sizes, offering economy and selection Compact dimensions saves panel space
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	CA723M22440VAC
AC1 Rating (Amps)	32 Amp AC1
AC3 Rating (Amps)	23/12 Amp AC3
AC3 Rating (kW)	11/10 kW
Contact Configuration	1 Normally Opened & 1 Normally Closed
Height	80 mm
IP Rating	IP20
Mounting Method	DIN Rail
Number Of Poles	4 Pole
Operating Coil Voltage	440 Volt AC
Please Note	Conventional Coil
Width	45 mm
