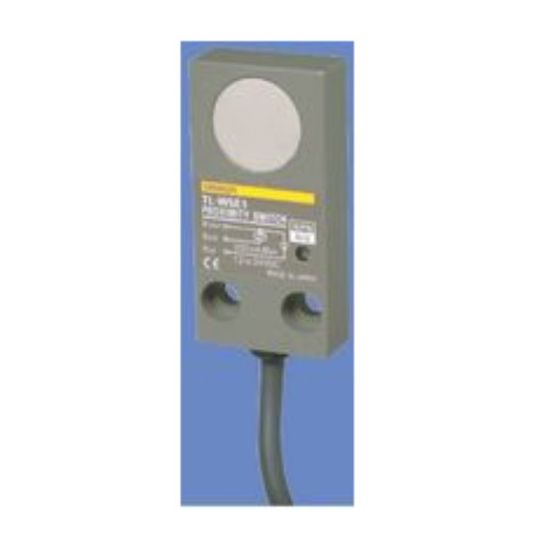

Omron Proximity Switch Inductive Sensing Unshielded Flush 12-24/10-30VDC NPN 1NO 2m L
Loading...
Description
Proximity Switch Inductive Sensing Unshielded Flush, Sensing Range: 3 mm, NPN, 12-24/10-30 Volt DC, 100 mA, NO, Dielectric Strength: 1000 VAC at 50/60 Hz, 2 mtr Cable, Flush Mount, IP67, ABS, -25 to 70 deg C
Key Specifications
| Barcode (EAN-13) |
4536854116292
|
|---|---|
| SKU |
OMRTL-W3MC1
|
| Brand |
Omron
|
| Product Type |
Proximity Sensors
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | TL-W3MC1 2M |
| Cable Size | 2 mtr |
| Current | 100 mA |
| Contact Configuration | Normally Opened |
| Dielectric Strength | 1000 VAC @ 50/60 Hz |
| IP Rating | IP67 |
| Material | ABS |
| Output Function | NPN |
| Operating Voltage | 12-24/10-30 Volt DC |
| Mounting Method | Flush |
| Sensing Range | 3 mm |
| Temperature | -25 to 70 deg C |
