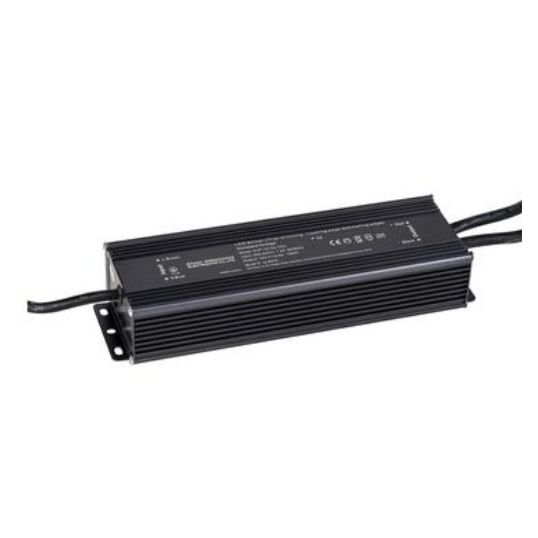

Havit Triac Dimmable LED Driver w/Flex & Plug 150W 240V Aluminium IP66 Blue

Description

Triac Dimmable LED Driver, 240 Volt AC Input Voltage, 12 Volt DC Output Voltage, 150 Watt, 12.5 Amp, 47/63 Hz, Dimmable, For Use With HV9625 240 Volt Dimmer and Single Colour LED Strip, 120 Watt Max. Load, IP66, 0.95 Power Factor, Aluminium, Grey, 40 to 60 deg C, 265 mm Length, 78 mm Width, 47 mm Height

Key Specifications

SKU	HAVHV9660-12V150W
Brand	Havit
Product Type	LED Drivers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Output constant voltage Built in active PFC function Efficiency 90% max Protections: short circuit/over loading/over temperature Full protection aluminium housing easy installation IP66 design for outdoor installation Cooling by free air convection Work with leading edge and trailing edge TRIAC dimmers Strong compatibility, flicker-free dimming
Standard Pack Size	1
UNSPSC Class	39101900
UOM	EA
Vendor Product	HV9660-12V150W
Colour	Grey
Current	12.5 Amp
Dimmable	Dimmable
For Use With	HV9625 240 Volt Dimmer and Single Colour LED Strip
Height	47 mm
Frequency	47/63 Hz
Input Voltage	240 Volt AC
IP Rating	IP66
Material	Aluminium
Max. Load	120 Watt
Output Voltage	12 Volt DC
Power Factor	0.95
Temperature	40 to 60 deg C
Wattage	150 Watt
Width	78 mm
