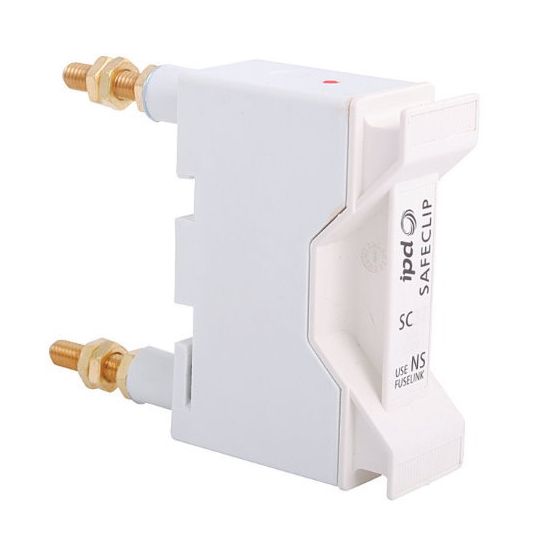

IPD Fuse Holder BS88 F1 32A 550VAC 2 Stud Rear White For Neutral HRC Clip-In Fuse Link

Description

Fuse Holder, 550 Volt AC, 32 Amp, 16 sq-mm, BS88 Type F1, 2 Stud Rear Connector, 80 kA Breaking Capacity, M5 Screw Mounting, White, 75.5 mm Height x 26.5 mm Width x 54 mm Depth, 5 Pack, For Use With Neutral HRC Clip-In Fuse Links

Key Specifications

Barcode (EAN-13)	9322017001124
SKU	EEFSC32PWH
Brand	IPD
Range Name	Safeclip
Product Type	Fuse Holders

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Self cleaning, self aligning base contacts Clip-in fuse links, no tools required for fuse replacement Full shrouded contacts, IP20 degree of protection DIN rail mounting with easy to remove carrier Made from flame retardant thermoplastic
Standard Pack Size	5
UNSPSC Class	39121600
UOM	EA
Vendor Product	SC32PWH
Colour	White
Cable Size	16 sq-mm
Connector Type	2 Stud Rear
Current	32 Amp
Dimensions	75.5 mm Height x 26.5 mm Width x 54 mm Depth
For Use With	Neutral HRC Clip-In Fuse Links
Fuse Holder Code	BS88 Type F1
Mounting Method	M5 Screw
Pack Size	5 Pack
Rated Breaking Capacity	80 kA
Voltage	550 Volt AC
