APEC 2.5mm Flat TPS Cable Red/White 500mtr

Description

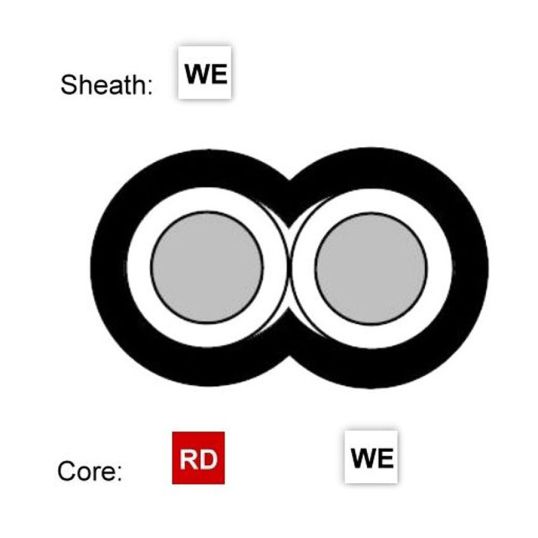

Flat TPS Cable, 2.5 mm, Annealed Copper, 450-750 Volt, 2 Core, 9.1 mm x 5.6 mm Overall Diameter, 100 mtr Length, 0.7 mm Insulation Thickness, 1 mm Sheath Thickness, Red/White Core, V-90 PVC Insulation, 3V-90 PVC Sheath, White Sheath, 90 deg C, AS/NZS 5000.2

Key Specifications

Barcode (EAN-13)	932666300132
SKU	APEVFM205C02RW-5
Brand	APEC
Product Type	Flat TPS Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	VFM205C02RW-1
Conductor Size	2.5 mm
Conductor Type	Annealed Copper
Core Colours	Red/White
Insulation Material	V-90 PVC
Insulation Thickness	0.7 mm
Number of Cores	2 Core
Overall Diameter	9.1 mm x 5.6 mm
Sheath Colour	White
Sheath Material	3V-90 PVC
Sheath Thickness	1 mm
Standards	AS/NZS 5000.2
Temperature	90 deg C
Voltage	450-750 Volt
